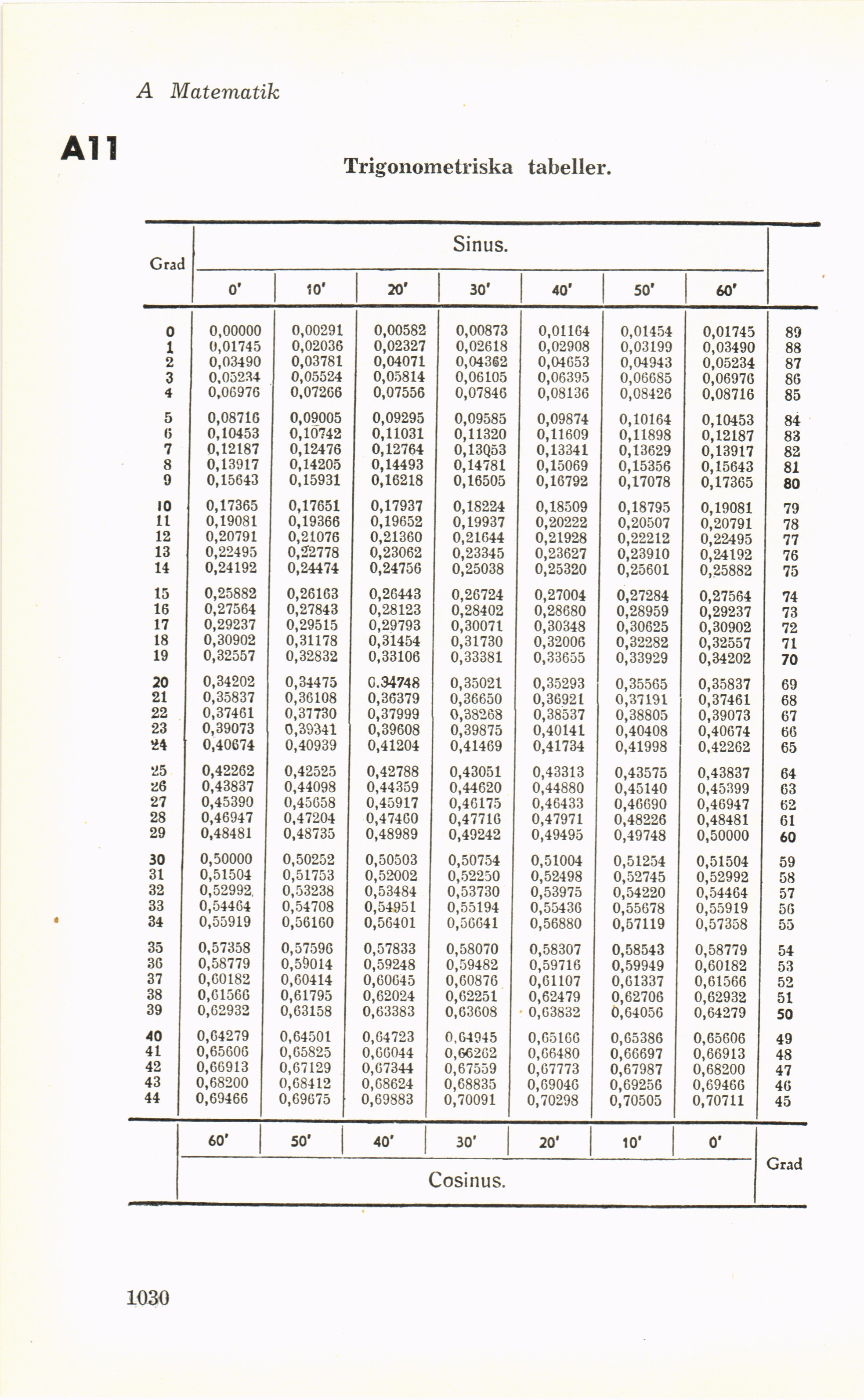

A Matematik
Trigonometriska tabeller.
Grad Sinus.
0’ 10’ 20’ 30’ 40’ 50* 60’
1030
0 0 00000 0,00291 0,00582 0,00873 0,01104 0,01454 0,01745 89
1 0 01745 0 02036 0,02327 0,02618 0,02908 0,03199 0,03490 88
2 0 03490 0 03781 0,04071 0,04362 0,01653 0,04943 0,05234 87
0’05"34 0,05524 0,05814 0,06105 0,06395 0,06685 0,06976 86
4 O!O6976 0,07266 0,07556 0,07846 0,08136 0,08426 0,08716 85
5 0 08716 0,09005 0,09295 0,09585 0,09874 0,10164 0,10453 84
6 0 10453 0,10742 0,11031 0,11320 0,11609 0,11898 0,12187 83
7 0 12187 0,12476 0,12764 0.13Q53 0,13341 0,13629 0,13917 82
8 0 13917 0,14205 0,14493 0,14781 0,15069 0,15356 0,15643 81
9 0*15643 0,15931 0,16218 0,16505 0,16792 0,17078 0,17365 80
10 0 17365 0,17651 0,17937 0,18224 0,18509 0,18795 0,19081 79
11 0,19081 0,19366 0,19652 0,19937 0,20222 0,20507 0,20791 78
12 0 20791 0,21076 0,21360 0,21644 0,21928 0,22212 0,22495 77
13 0 29495 0,22778 0,23062 0,23345 0,23627 0,23910 0,24192 76
14 0,24192 0,24474 0,24756 0,25038 0,25320 0,25601 0,25882 75
15 0 25882 0,26163 0,26443 0,26724 0,27004 0,27284 0,27564 74
16 0,27564 0,27843 0,28123 0,28402 0,28680 0,28959 0,29237 73
17 0,29237 0,29515 0,29793 0,30071 0,30348 0,30625 0,30902 72
18 0,30902 0,31178 0,31454 0,31730 0,32006 0,32282 0,32557 71
19 0,32557 0,32832 0,33106 0,33381 0,33655 0,33929 0,34202 70
20 0,34202 0,34475 0.34748 0,35021 0,35293 0,35565 0,35837 69
21 0,35837 0,36108 0,36379 0,36650 0,36921 0,37191 0,37461 68
22 0,37461 0,37730 0,37999 0,38268 0,38537 0,38805 0,39073 67
23 0,39073 0,39341 0,39608 0,39875 0,40141 0,40408 0,40674 66
24 0,40674 0,40939 0,41204 0,41469 0,41734 0,41998 0,42262 65
25 0,42262 0,42525 0,42788 0,43051 0,43313 0,43575 0,43837 64
26 0 43837 0,44098 0,44359 0,44620 0,44880 0,45140 0,45399 63
27 0,45390 0,45658 0,45917 0,46175 0,46433 0,46690 0,46947 62
28 0,46947 0,47204 0,47460 0,47716 0,47971 0,48226 0,48481 61
29 0,48481 0,48735 0,48989 0,49242 0,49495 0,49748 0,50000 60
30 0,50000 0,50252 0,50503 0,50754 0,51004 0,51254 0,51504 59
31 0,51504 0,51753 0,52002 0,52250 0,52498 0,52745 0,52992 58
32 0,52992 0,53238 0,53484 0,53730 0,53975 0,54220 0,54464 57
33 0,54464 0,54708 0,54951 0,55194 0,55436 0,55678 0,55919 56
34 0,55919 0,56160 0,56401 0,56641 0,56880 0,57119 0,57358 55
35 0,57358 0,57596 0,57833 0,58070 0,58307 0,58543 0,58779 54
36 0,58779 0,50014 0,59248 0,59482 0,59716 0,59949 0,60182 53
37 0 60182 0,60414 0,60645 0,60876 0,61107 0,61337 0,61566 52
38 0,61566 0,61795 0,62024 0,62251 0,62479 0,62706 0,62932 51
39 0,62932 0,63158 0,63383 0,63608 0,63832 0,64056 0,64279 50
40 0 64279 0,64501 0,64723 0,64945 0,65166 0,65386 0,65606 49
41 0,65606 0,65825 0,66044 0,66262 0,66480 0,66697 0,66913 48
42 0,66913 0,67129 0,67344 0,67559 0,67773 0,67987 0,68200 47
43 0,68200 0,68412 0,68624 0,68835 0,69046 0,69256 0,69466 46
44 0,69466 0,69675 0,69883 0,70091 0,70298 0,70505 0,70711 45
60’ 50’ 40" | 30’ | 20’ 10’ 0’
Cosinus.
Grad
