The two distal condyles of
femur reach nearly equally
far behind.
|
|
|

The two distal condyles reach
nearly equally far behind.
|
|
|
The inner condyle reaches
somewhat behind the outer one.

The groove on the distal end
of the tibia for articulation
with the astragalus shallow.
|
|
|
The groove on the distal
end of the tibia shallow.
|
|
|
The groove on the distal end
of the tibia not very shallow.

Fibula greatly expanded at
the two extremities.
|
|
Fibula greatly expanded at
the two extremities.
|
|
Fibula not greatly expanded
at the two extremities.

Tarsale IV—V antero-
posteriorly elongated (also
in Procyon.)
|
|
|
Tarsale IV—V antero-
posteriorly elongated.
|
|
|
Tarsale IV—V transversely

elongated.

A very large pointed
sesamoid is articulated to
the inner side of the centrale

(absent in Procyon.)
|
|
|
|
A large somewhat pointed
sesamoid is articulated to the
inner side of the centrale.
|
|
|
|
Tibial sesamoid (not always?)
present, nearly as large as in
Æluropus (cfr. fig. 3).

Metatarsals long, slender
(also in Procyon).
|
|
Metatarsals rather short and
stout.
|
|
Metatarsals rather long and
slender.

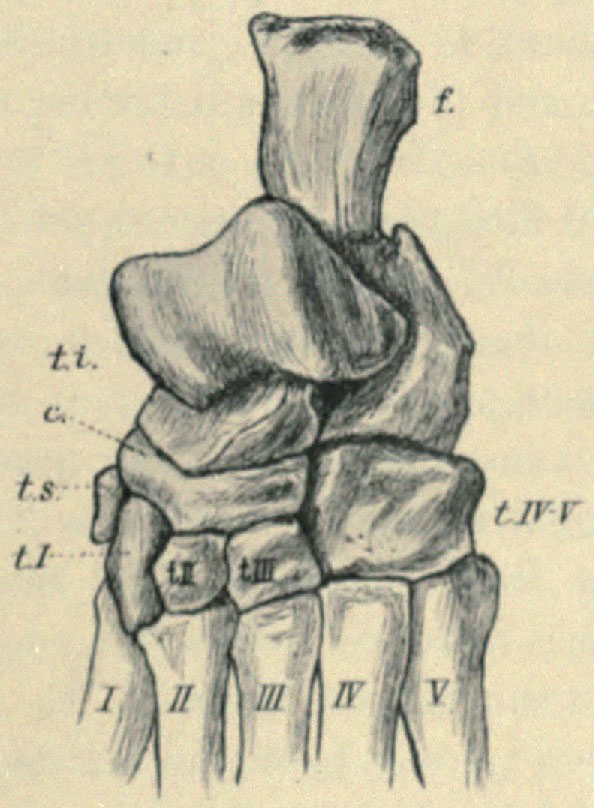

Fig. 3. Tarsus of Ursus arctos. (½). c = centrale, f = fibulare (calcaneus), t. i. = tibiale-intermedium<b(astragalus), t.s. = tibial sesamoid. t I—V = 1<sust</su to 5<suth</su tarsal, I—V = 1<sust</su to 5<suth</su metatarsal.
Fig. 3. Tarsus of Ursus arctos. (½). c = centrale, f = fibulare (calcaneus), t. i. = tibiale-intermedium
(astragalus), t.s. = tibial sesamoid. t I—V = 1st to 5th tarsal, I—V = 1st to 5th metatarsal.


No rhomboid area visible in
the front region of the brain.
|
|
A distinct rhomboid area
present.
|
|
A distinct rhomboid area
present.

General form of the brain
mostly procyonoid.
|
|
|
General form mostly
arctoid.
|
|
|
The arctoid form of the
brain very different from
the procyonoid one.

Lobi olfactorii short. |
|
Lobi olfactorii extremely
long.
|
|
Lobi olfactorii short.

Cerebellum mostly
overlapped by cerebrum.
|
|
Cerebellum mostly free.|
|
Cerebellum somewhat
concealed.
