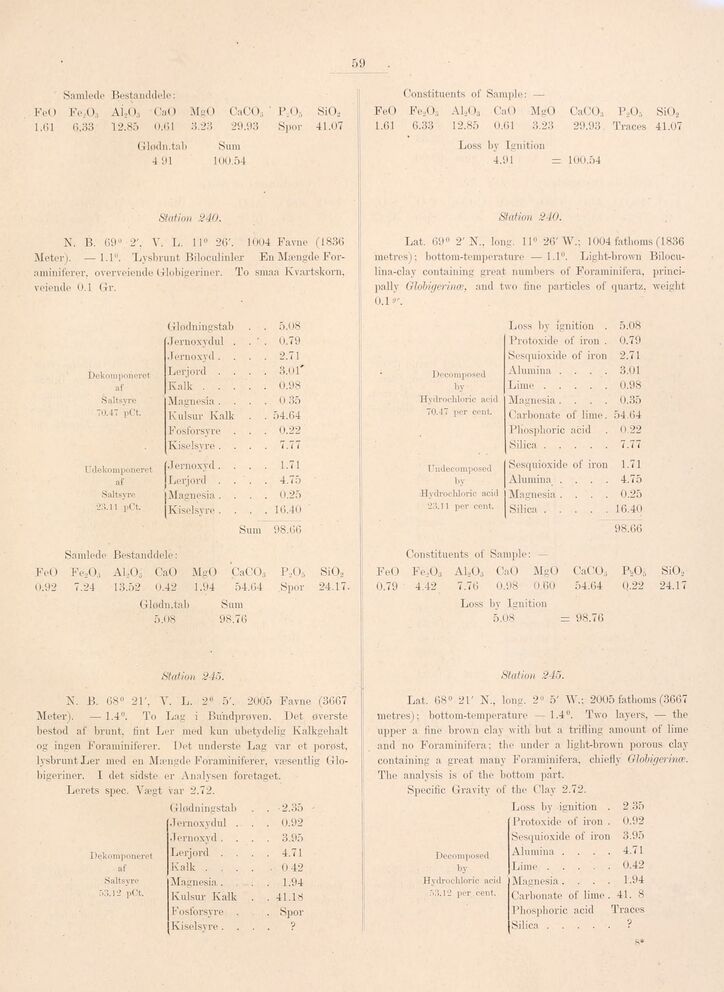

Below is the raw OCR text
from the above scanned image.
Do you see an error? Proofread the page now!
Här nedan syns maskintolkade texten från faksimilbilden ovan.
Ser du något fel? Korrekturläs sidan nu!
This page has never been proofread. / Denna sida har aldrig korrekturlästs.
Samlede Bestanddele:
FeO Fe.O, AL03 CaO MgO CaCO, ’ 1\0:> Si02
1.61 6.33 12.85 0.61 3.23 29.93 Spor 41.07
Glødn.tal) Sum
4 91 100.54
Constituents ol’ Sample: —
FeO Fe,Os AL03 CaO MgO
1.61 6.33 12.85 0.61 3.23
CaC03 P,0, Si02
29.93. Traces 41.07
Loss by Ignition
4.91 = 100.54
Station 2-40.
Station 240.
N. B. 69" 2’, V. L. 11° 26’. 1004 Favne (1836
Meter). —1.1°. Xysbrunt Biloculinler En Mængde
Foraminiferer. overveiende Globigeriner. To smaa Kvartskorn,
veiende 0.1 Gr.
Dekomponeret
af
Saltsyre
70.47 pCt.
Utlekomponeret
af
Saltsyre
23.11 pCt.
Glødningstab . . 5.08
Jernoxydul . . ’ . 0.79
Jernoxyd. . . . 2.71
Lerjord . . . . 3.01’
Kalk.....0.98
Magnesia. . . . 0.35
Kulsur Kalk . . 54.64
Fosforsyre . . . 0.22
Kiselsyre . . . . 7.77
(Jernoxyd. . . . 1.71
Lerjord . . . . 4.75
J Magnesia.... 0.25
(Kiselsyre. . . . 16.40
Sum 98.66
Samlede Bestanddele:
FeO FeoO, A1,03 CaO MgO CaC03
0.92 7.24 13.52 0.42 1.94 54.64
Glødn.tab Sum
5.08 98.76
P,0:,
Spor
Si02
24.17.
Lat. 69° 2’N.. long. 11° 26’W.; 1004 fathoms (1836
metres); bottom-temperature — 1.1°. Light-brown
Bilocu-lina-clay containing great numbers of Foraminifera,
principally Globigerinæ, and two fine particles of quartz, weight
0.1 ♂r.
Loss by ignition . 5.08
Protoxide of iron . 0.79
Sesquioxide of iron 2.71
Alumina . . . . 3.01
Lime.....0.98
Magnesia. . . . 0.35
Carbonate of lime. 54.64
Phosphoric acid . 0.22
Silica.....7.77
Decomposed
by
Hydrochloric acid
70.47 per cent.
Undecomposed
by
Hydrochloric acid
23.11 per cent.
Sesquioxide of iron 1.71
Alumina . . . . 4.75
Magnesia. . . . 0.25
Silica.....16.40
98.66
Constituents of Sample: —
FeO Fe,03 A1203 CaO MgO CaCO.,
0.79 4.42 7.76 0.98 0.60 54.64
Loss by Ignition
5.08 rr 98.76
PA
0.22
SiO,
24.17
Station 245.
N. B. 68° 21’. V. L. 2° 5’. 2005 Favne (3667
Meter). — 1.4°. To Lag i Bundprøven. Det øverste
bestod af brunt, fint Ler med kun ubetydelig Kalkgehalt
og ingen Foraminiferer. Det underste Lag var et porøst,
lysbrunt Ler med en Mængde Foraminiferer, væsentlig
Globigeriner. I det sidste er Analysen foretaget.
Lerets spee. Yægt var 2.72.
Glødningstab . . -2.35
-Jernoxydul . . . 0.92
Jernoxyd. . . . 3.95
Dekomponeret Lerjord .... 4.71
af Kalk.....0 42
Saltsyre Magnesia ... 1.94
r.3.12 pCt. Kulsur Kalk . . 41.18
Fosforsyre . . Spor
Kiselsyre.... ?
Station 245.
Lat. 68° 21’ N., long. 2° 5’ W.; 2005 fathoms (3667
metres); bottom-temperature — 1.4°. Two layers, — the
upper a fine brown clay with but a trifling amount of lime
and no Foraminifera; the under a light-brown porous clay
containing a great many Foraminifera, chiefly Globigei’ince.
The analysis is of the bottom part.
Specific Gravity of the Clay 2.72.
Loss by ignition . 2.35
Protoxide of iron . 0.92
Sesquioxide of iron 3.95
Alumina . . . . 4.71
Lime.....0.42
Magnesia.... 1.94
Carbonate of lime .41.8
Phosphoric acid Traces
Silica.....?
Decomposed
by
Hydrochloric acid
53.12 per . cent.
