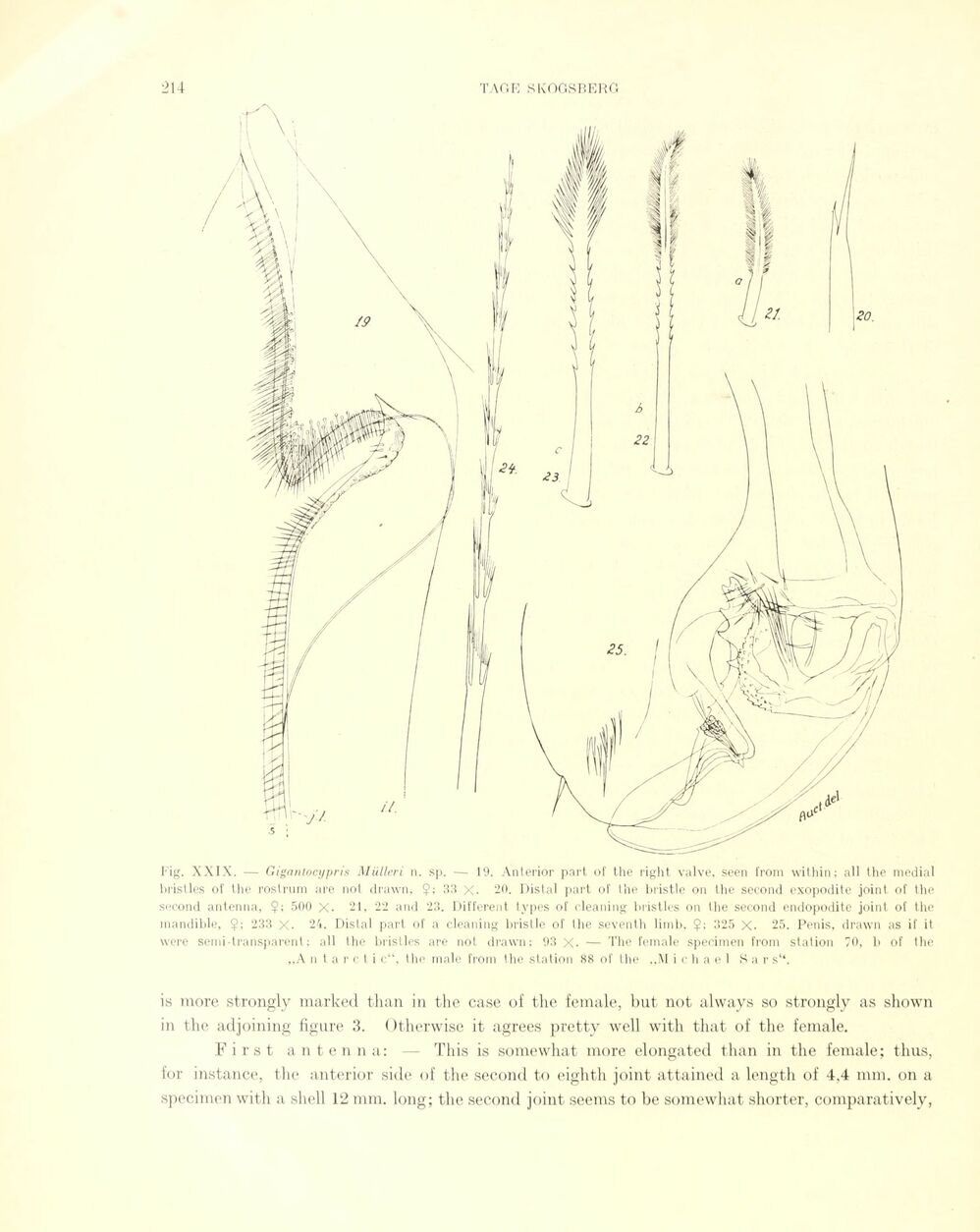

Fig. XXIX. — Gigantocypris Mülleri n. sp. — 19. Anterior part of the right valve, seen from within; all the medial
bristles of the rostrum are not drawn, $; 33 x. 20. Distal part of the bristle on the second exopodite joint of the
second antenna, $; 500 X. 21, 22 and 23. Different types of cleaning bristles on the second endopodite joint of the
mandible, $; 233 X. 24. Distal part of a cleaning bristle of the seventh limb, $; 325 X. 25. Penis, drawn as if it
were semi-transparent ; all the bristles are not drawn: 93 X. — The female specimen from station 70, b of the
,,A n t a r c t i c“. the male from the station 88 of the „M i ch a e 1 S a r s“.
is more strongly marked than in the case of the female, but not always so strongly as shown
in the adjoining figure 3. Otherwise it agrees pretty well with that of the female.
First antenna: — This is somewhat more elongated than in the female; thus,
for instance, the anterior side of the second to eighth joint attained a length of 4,4 mm. on a
specimen with a shell 12 mm. long; the second joint seems to be somewhat shorter, comparatively,
