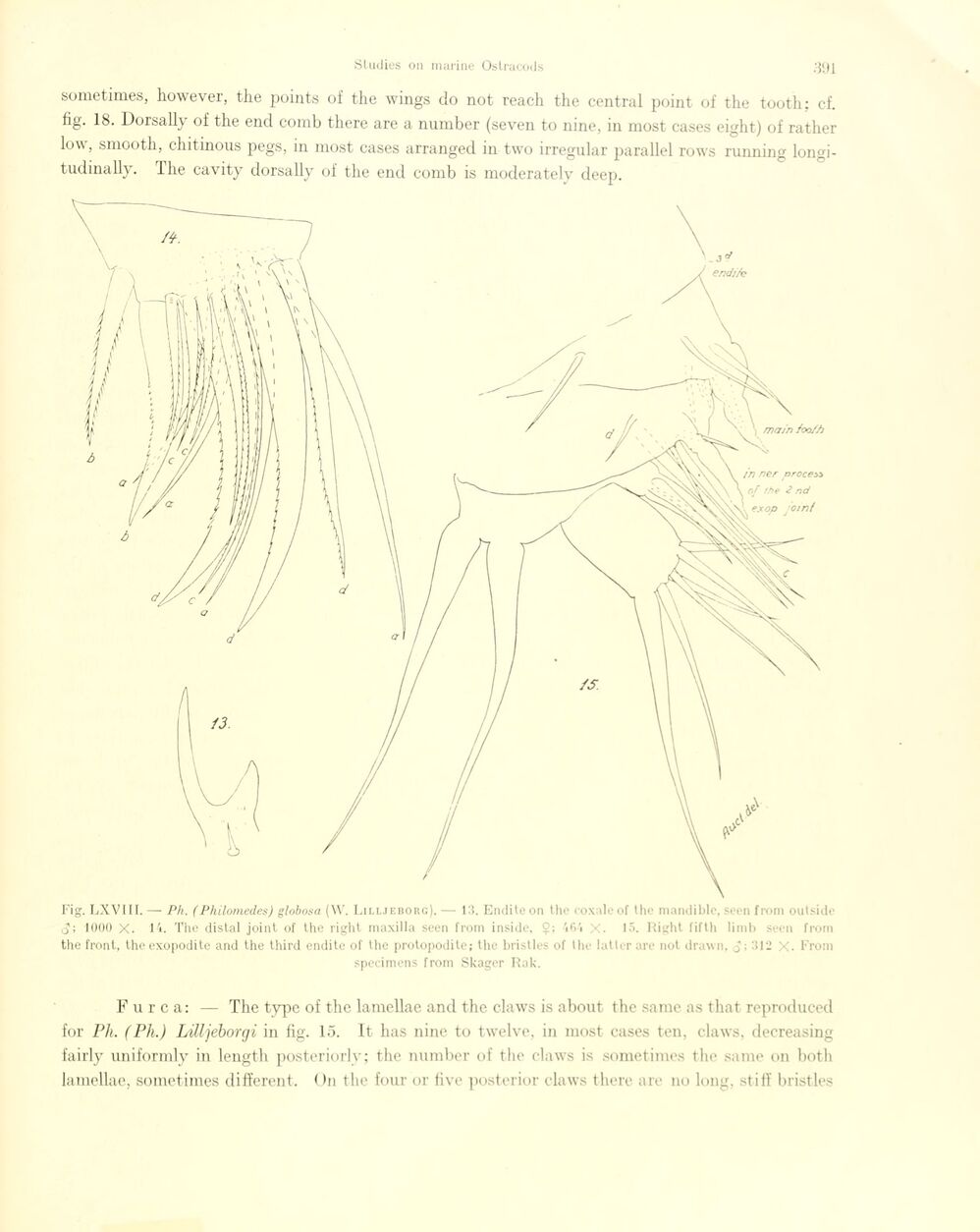

sometimes, however, the points of the wings do not rea ch the central point of the tooth; cf.
fig. 18. Dorsally of the end comb tliere are a number (seven to nine, in most cases eight) of rather
low, smooth, chitinous pegs, in most cases arranged in two irregulär parallel rows running
longi-tudinally. The cavity dorsally of the end comb is moderately deep.
specimens from Skager Rak.
Furca: — The type of the lamellae and the claws is about the same as that reproduced
for Ph. (Ph.) Lüljéborgi in fig. 15. It has nine to twelve, in most cases ten, claws, decreasing
fairly uniformly in length posteriorly; the number of the claws is sometimes the same on both
lamellae, sometimes different. On the four or live posterior claws there are no long, sti ff bristles
