they are very weak and have no free points. The cavity situated dorsally of the end comb
is rather deep and is furnished dorsally with three moderately long, claviform, smooth, chitinous
pegs (fig. 8).
Furca (fig. 5): — This has ten claws, diminishing in length posteriorly, without any
clear division into main claws and secondary claws. Claws nos. 2 to 4 are rather decidedly
bent; this bending varies, however, to some extent. The five anterior claws have a
proximalmedial group of long, stifï bristles, the posterior ones have no such bristles. Medially close to

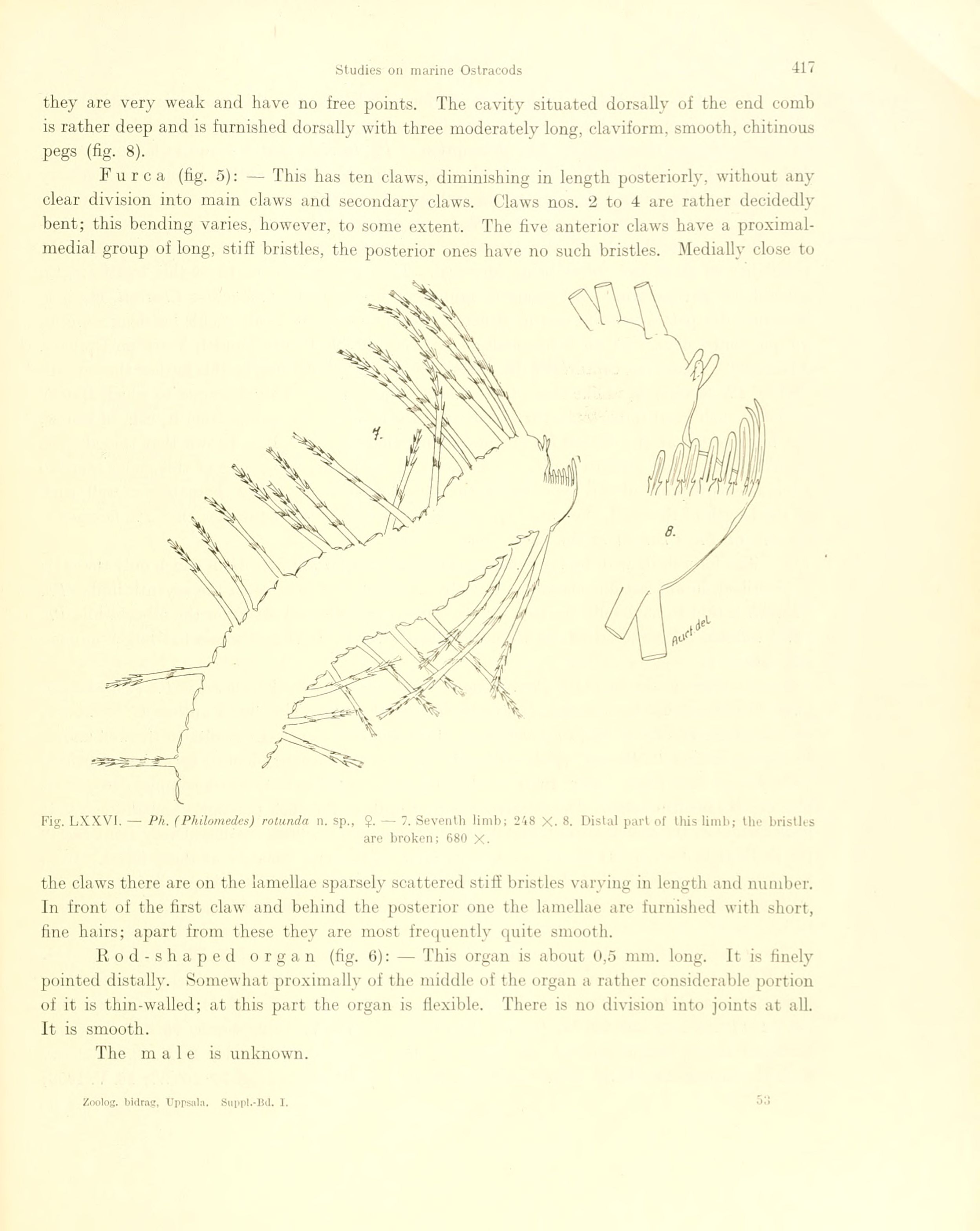

Fig. LXXVI. — Pk. (Philomedcs) rotunda n. sp., Ç. — 7. Seventh limb; 248 X. 8. Distal part of this limb; the bristles
are broken; 680 X.
the claws there are on the lamellae sparsely scattered stilf bristles varving in length and number.
In front of the first claw and behind the posterior one the lamellae are furnished with short,
fine hairs; apart from these they are most frequently quite smooth.
Rod-shaped organ (fig. 6): — This organ is about 0,5 mm. long. It is finely
pointed distallv. Somewhat proximally of the middle of the organ a rather considérable portion
of it is thin-walled; at this part the organ is flexible. There is no division into joints at all.
It is smooth.
The male is unknown.
