Habitat: — South Georgia: S. A. E., Station 22, off May Bay, lat. 54° 17’ S.,
long. 36° 28’ W. ; 14. Y. 1902; depth, 75 m. ; elay with scattered algae; temperature at the
bottom + 1,5° C.: 2 mature females; R. M. S. 168. S. A. E., Station 25, off Grytviken, lat.
54° 22’ S., long. 36° 27’ W.; 21. V. 1902; depth, 24—52 m.; grey clay with scattered algae:
one mature female; R. M. S., on slides. S. A. E., Station 33, Grytviken, lat. 54° 22’ S., long.
36° 28’ \V.; 30. V. 1902; depth 22 m. ; clay with algae: 20 mature females and 7 larvae in different
stages; R. M.* S. 169. S. A. E., Station 34, off the mouth of Cumberland Bay, lat. 54° 11’ S.,
long. 36° 18’ W., (t y p e - 1 o c a 1 i t y); 5. VI. 1902; depth, 252—310 m.; grey clay with
scattered stones; temperature at the bottom, + 1,45° C.: 6 mature females; R. M. S. 170.
Type-specimen on slides in the collections of the R. M. S.

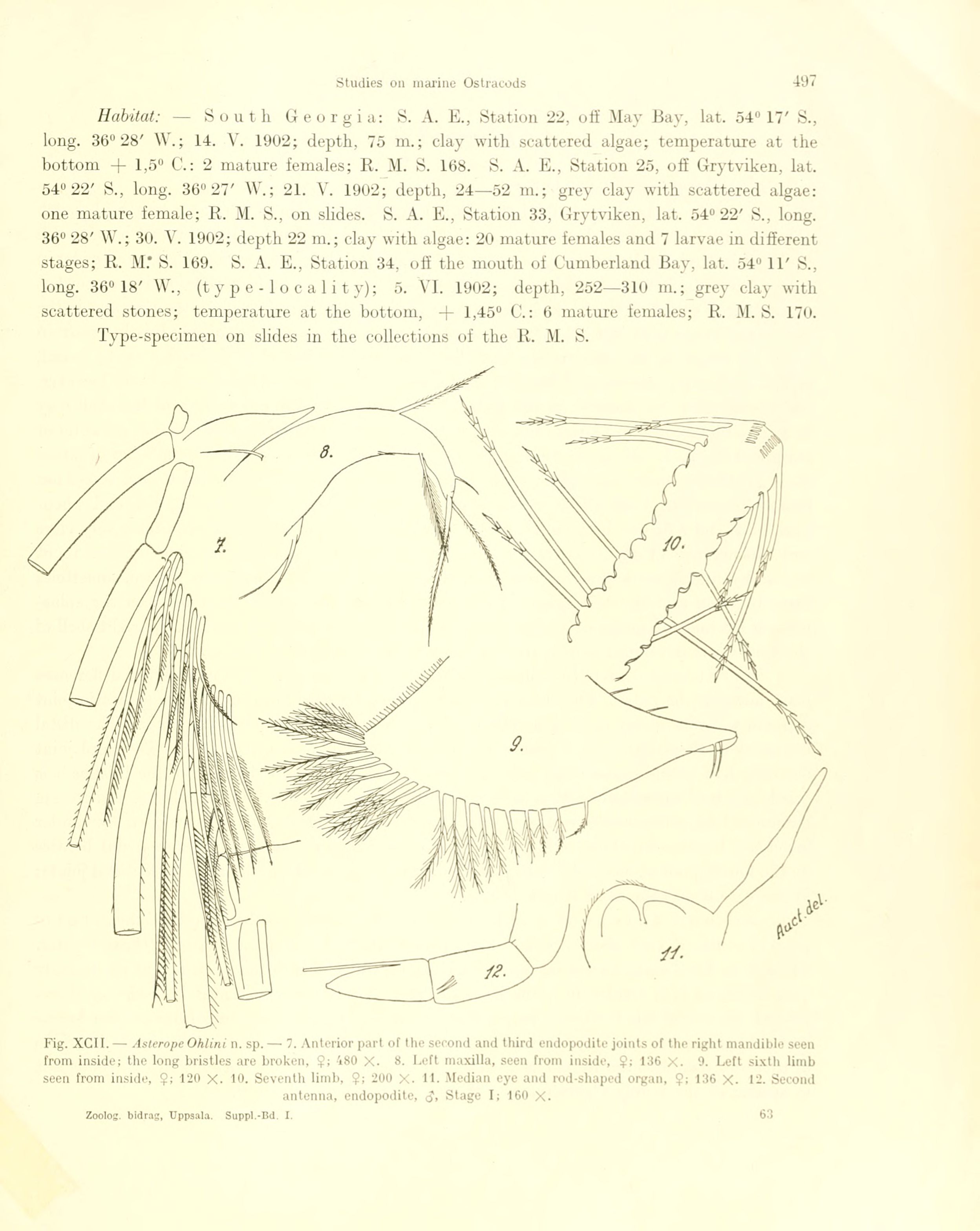

Fig. XCI I. — Asterope Ohlim n. sp. — 7. Anterior part of I lie second and tliird endopodite joints of the right mandible seen
from inside; the long bristles are broken, $; 480 X. 8. Left maxilla, seen from inside, $; 136 X. 0. Left sixth limb
seen from inside, $; 120 X. 10. Seventh limb, ?; 200 x. II. Median eye and rod-sliapcd organ, $; 136 X. 12. Second
antenna, endopodite, 3, Stage I; 160 X.
Zoolog, bidrag, Uppsala. Suppl.-Bd. I. 63
