one of the two specimens investigated — the type-specimen — it was only developed on the
right mandible). In addition there are dorsally on the outside of this joint a few groups of short,
fine, stifE hairs. Of the two dorso-distal bristles on this joint the shorter one is only abolit as
long as the dorsal side of the joint. The exopodite (fig. 8) is, if its two end bristles are
included, about two-thirds of the length of the anterior side of the first endopodite joint.
Endopodite (fig. 8): First joint: The two longest of the three ventral bristles have no
short secondary bristles proximally of the long secondary bristles. Second joint: The proximal
bristle is not quite half as long as the main bristle a. There are five cleaning bristles in a
distinct lower row and one cleaning bristle between the main bristles b and c; on the mandible of
the right side there was, in addition, on one of the two specimens investigated (not on the type-

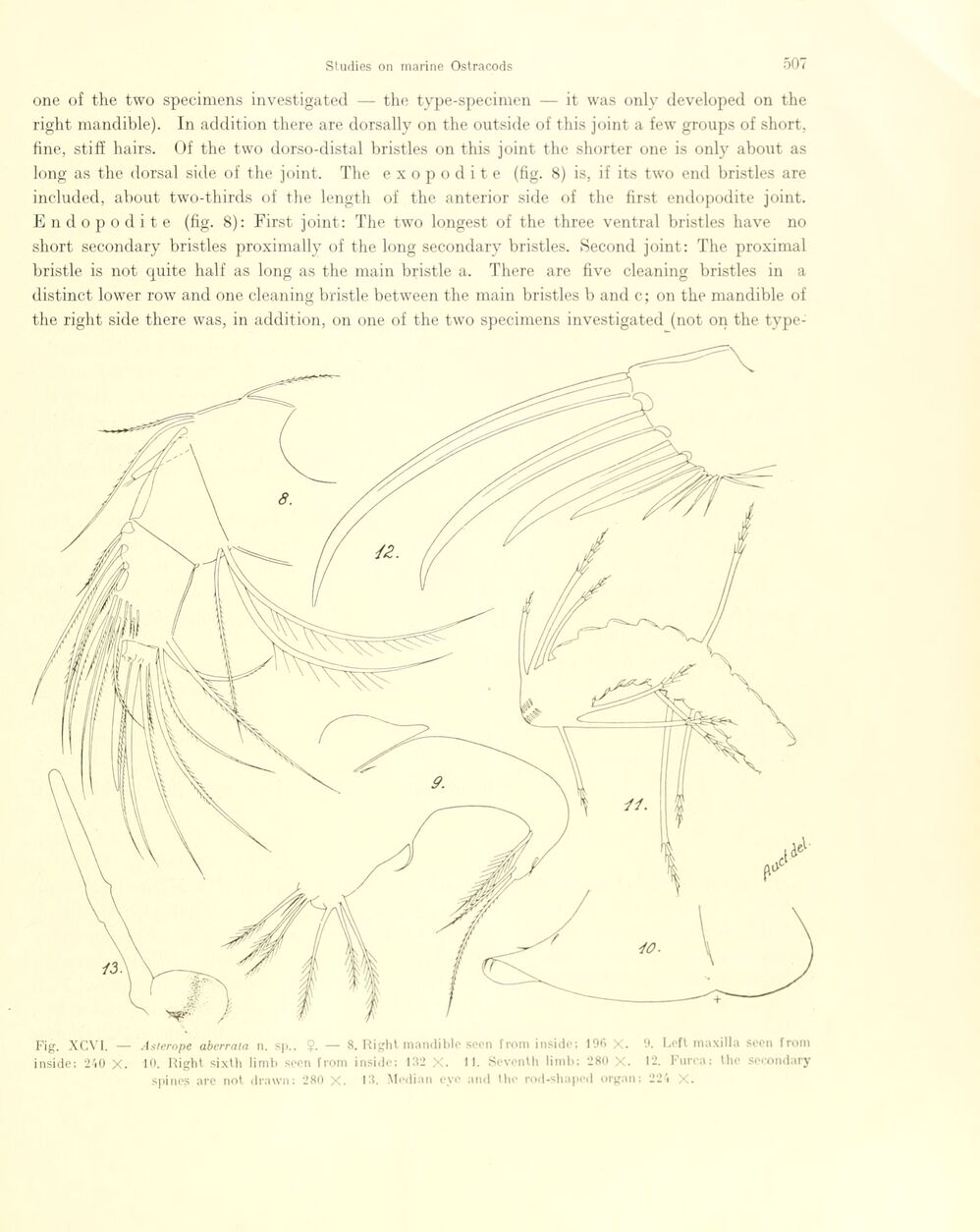

Asterope aberrata n. sp., Ç. — 8. Right mandible seen from inside; 196 X. 9. Lefl maxilla soen from
10. Right sixth limb seen from inside; 132 X. 11. Seventh limb; 280 X. 12. Furca; the secondary
spines are not drawn: 280 x. 13. Median cyc and the rod-shaped organ: 224 X.
Fig. XCVI.
-inside; 240 X.
