hairs and is somewhat longer than the total length of the second and third joints. The e-bristle
is not quite twice the length of this limb, is rather broadly sword-shaped distally and has
short hairs proximally as well. The other bristles on the two end joints are not quite half as
long as the e-bristle. Ail the joints are smooth.
Second antenna: — Pro topodite: The length of this in the specimen
investigated was 1,4—1,5 mm. Exopodite: The proportion between the length of this
brauch and that of the protopodite is about 10 : 6. The proportion between the length of the

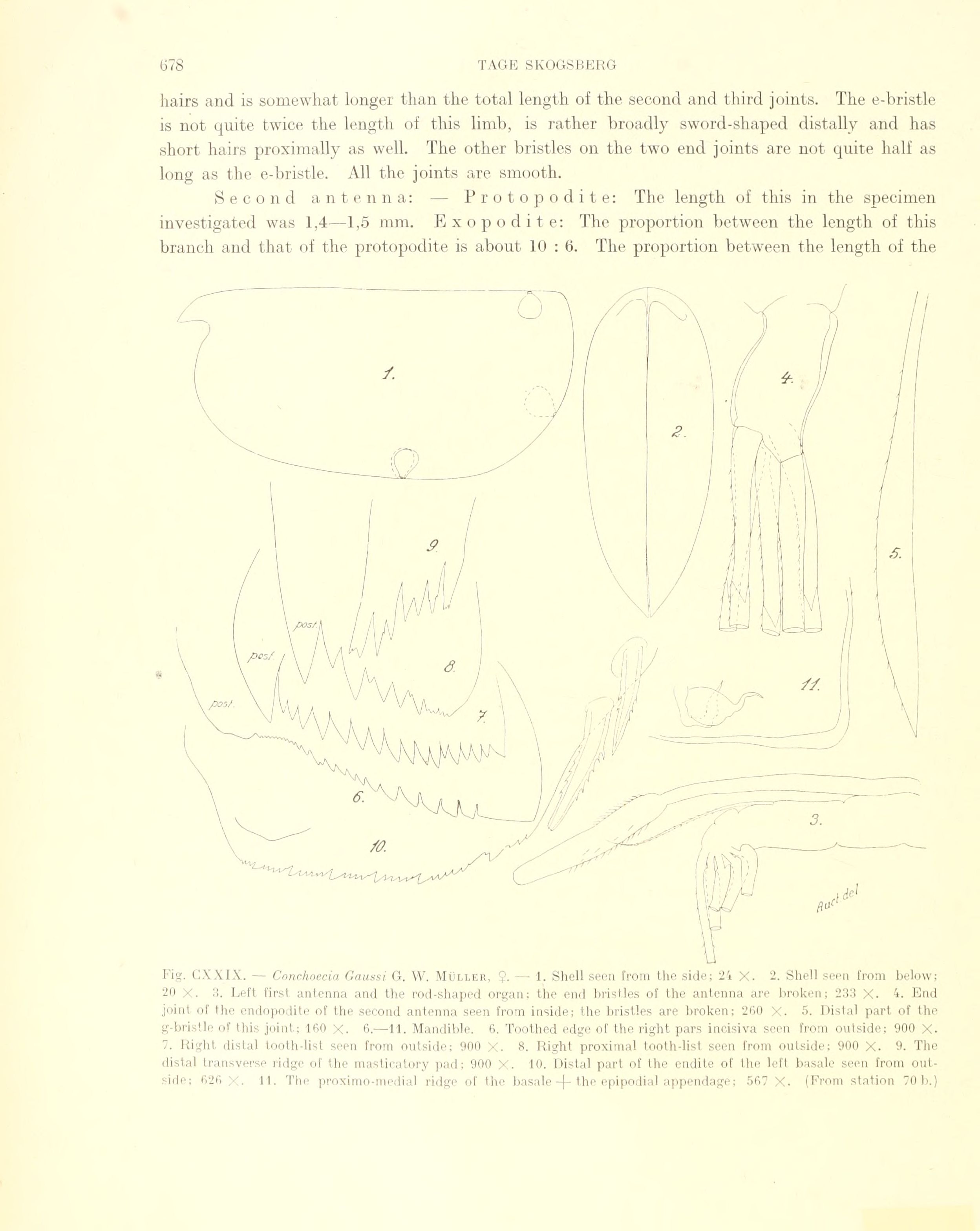

20 X. 3. Left first antenna and the rod-shaped organ; the end bristles of the antenna are broken; 233 X. 4. End
joint of the endopodite of the second antenna seen from inside; the bristles are broken; 260 X. 5. Distal part of the
g-bristlo of this joint; 160 X. 6.—11. Mandible. 6. Toothed edge of the right pars incisiva seen from outside; 900
X-7. Right distal tooth-list seen from outside; 900 X. 3. Right proximal tooth-list seen from outside; 900 X. 9. The
distal transverse ridge of the masticatory pad; 900 X. 10. Distal part of the endite of the left basale seen from
outside; 626 X. 11. The proximo-medial ridge of the basale -f- the epipodia] appendage; 567 X. (From station 70 b.)
