Mand ib le: — With regard to this limb the type-specimen showed practically
complete agreement with P h. (Ph.) globosa. In a few other specimens this limb was rather
considerably more siender, and its bristles, especially those on the endopodite, were relatively
shorter; on the latter specimens the secondary bristles also seemed to be more weakly developed.

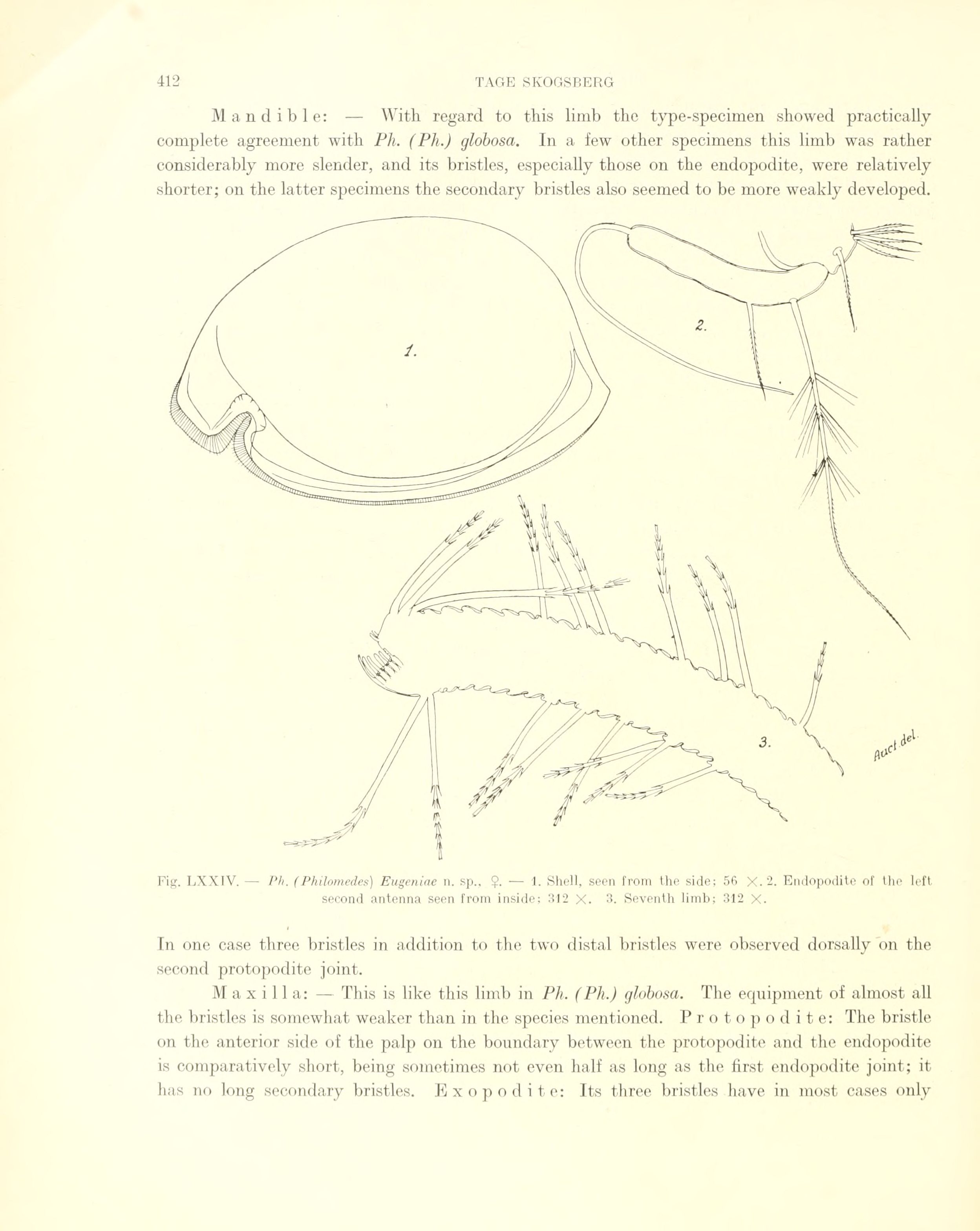

Fif;;. LXXIV. — Ph. (Philomedes) Eugeniae n. sp„ ?. •— 1. Shell, seen from the side; 56 X.2. Endopodite of the left
second antenna seen from inside; 312 X. 3. Seventh limb; 312 X.
In one case three bristles in addition to the two distal bristles were observed dorsally on the
second protopodite joint.
Maxilla: — This is like this limb in Ph. (Pli.) globosa. The equipment of almost all
the bristles is somewhat weaker than in the species mentioned. Protop odite: The bristle
on the anterior side of the palp on the boundary between the protopodite and the endopodite
is comparatively short, being sometimes not even half as long as the first endopodite joint; it
has no long secondary bristles. Exopodite: Its three bristles have in most cases only
