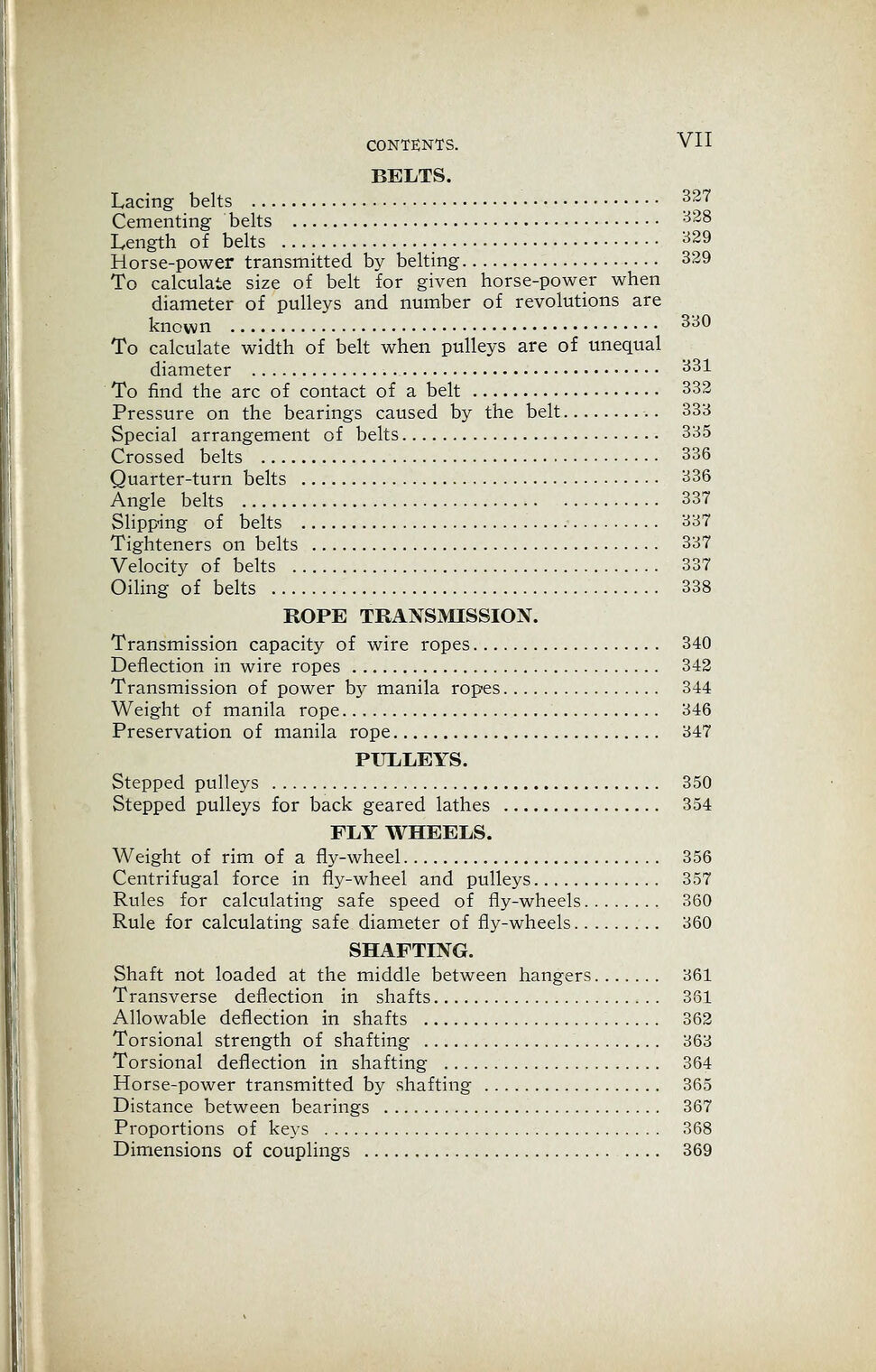

| BELTS. | |
| Lacing belts | 327 |
| Cementing belts | 328 |
| Length of belts | 329 |
| Horse-power transmitted by belting | 329 |
| To calculate size of belt for given horse-power when
diameter of pulleys and number of revolutions are known | 330 |
| To calculate width of belt when pulleys are of unequal
diameter | 331 |
| To find the arc of contact of a belt | 332 |
| Pressure on the bearings caused by the belt | 333 |
| Special arrangement of belts | 335 |
| Crossed belts | 336 |
| Quarter-turn belts | 336 |
| Angle belts | 337 |
| Slipping of belts | 337 |
| Tighteners on belts | 337 |
| Velocity of belts | 337 |
| Oiling of belts | 338 |
| ROPE TRANSMISSION. | |
| Transmission capacity of wire ropes | 340 |
| Deflection in wire ropes | 342 |
| Transmission of power by manila ropes | 344 |
| Weight of manila rope | 346 |
| Preservation of manila rope | 347 |
| PULLEYS. | |
| Stepped pulleys | 350 |
| Stepped pulleys for back geared lathes | 354 |
| FLY WHEELS. | |
| Weight of rim of a fly-wheel | 356 |
| Centrifugal force in fly-wheel and pulleys | 357 |
| Rules for calculating safe speed of fly-wheels | 360 |
| Rule for calculating safe diameter of fly-wheels | 360 |
| SHAFTING. | |
| Shaft not loaded at the middle between hangers | 361 |
| Transverse deflection in shafts | 361 |
| Allowable deflection in shafts | 362 |
| Torsional strength of shafting | 363 |
| Torsional deflection in shafting | 364 |
| Horse-power transmitted by shafting | 365 |
| Distance between bearings | 367 |
| Proportions of keys | 368 |
| Dimensions of couplings | 369 |
