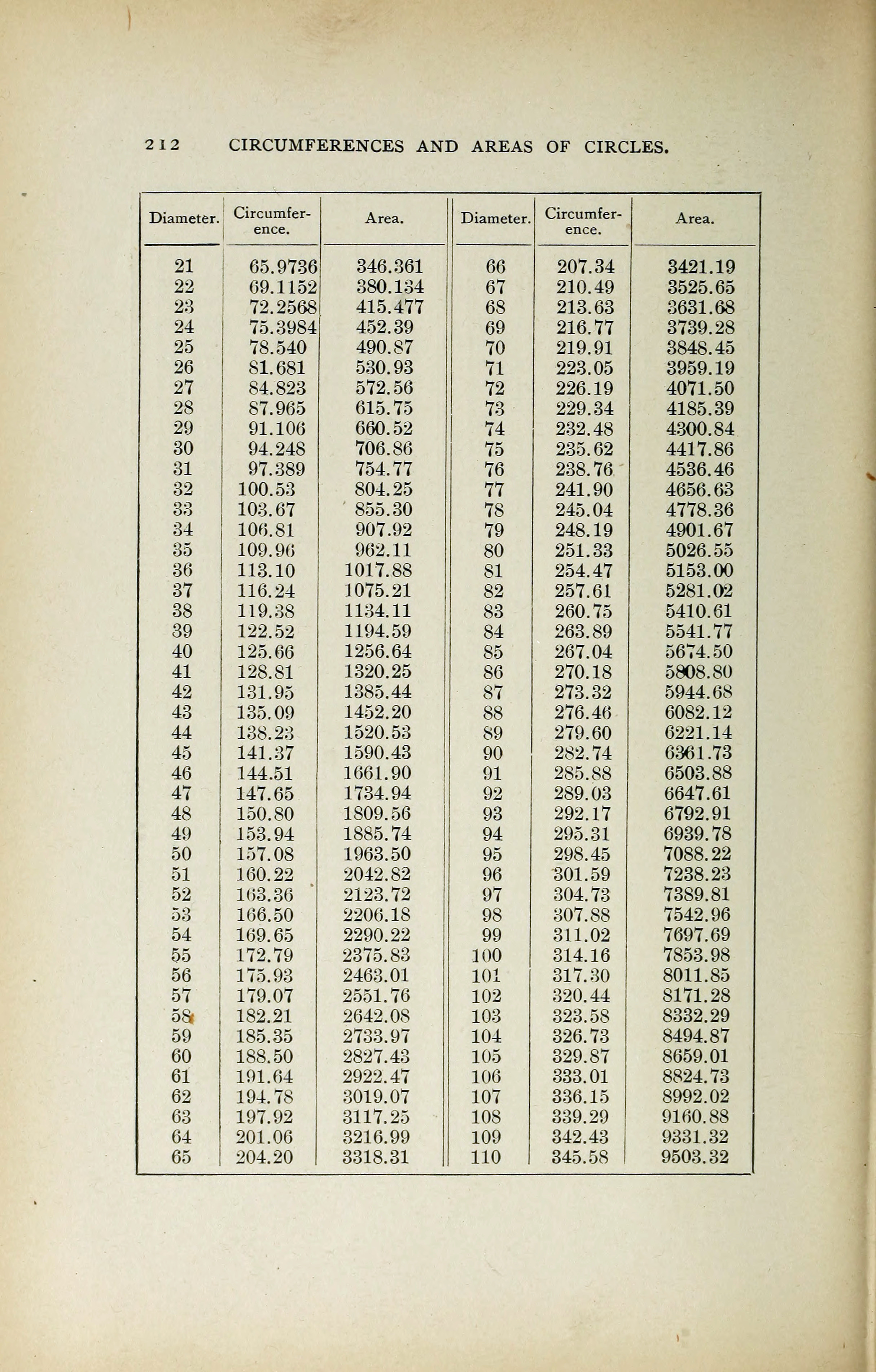

CIRCUMFERENCES AND AREAS OF CIRCLES.
Diameter. Circumfer-
ence.
Area. Diameter. Circumfer-
ence.
Area.
21 65.9736 346.361 m 207.34 3421.19
22 69.1152 380.134 67 210.49 3525.65
23 72.2568 415.477 68 213.63 3631.68
24 75.3984 452.39 69 216.77 3739.28
25 78.540 490.87 70 219.91 3848.45
26 SI. 681 530.93 71 223.05 3959.19
27 84.823 572.56 72 226.19 4071.50
28 87.965 615.75 73 229.34 4185.39
29 91.106 660.52 74 232.48 4300.84
30 94.248 706.86 75 235.62 4417.86
31 97.389 754.77 76 238.76 4536.46
32 100.53 804.25 77 241.90 4656.63
33 103.67 855.30 78 245.04 4778.36
34 106.81 907.92 79 248.19 4901.67
35 109.96 962.11 80 251.33 5026.55
36 113.10 1017.88 81 254.47 5153.00
37 116.24 1075.21 82 257.61 5281.02
38 119.38 1134.11 83 260.75 5410.61
39 122.52 1194.59 84 263.89 5541.77
40 125.66 1256.64 85 267.04 5674.50
41 128.81 1320.25 86 270.18 5808.80
42 131.95 1385.44 87 273.32 5944.68
43 135.09 1452.20 88 276.46 6082.12
44 138.23 1520.53 89 279.60 6221.14
45 141.37 1590.43 90 282.74 6361.73
46 144.51 1661.90 91 285.88 6503.88
47 147.65 1734.94 92 289.03 6647.61
48 150.80 1809.56 93 292.17 6792.91
49 153.94 1885.74 94 295.31 6939.78
50 157.08 1963.50 95 298.45 7088.22
51 160.22 2042.82 96 301.59 7238.23
52 163.36 2123.72 97 304.73 7389.81
53 166.50 2206.18 98 307.88 7542.96
54 169.65 2290.22 99 311.02 7697.69
55 172.79 2375.83 100 314.16 7853.98
56 175.93 2463.01 101 317.30 8011.85
57 179.07 2551.76 102 320.44 8171.28
58* 182.21 2642.08 103 323.58 8332.29
59 185.35 2733.97 104 326.73 8494.87
60 188.50 2827.43 105 329.87 8659.01
61 191.64 2922.47 106 333.01 8824.73
62 194.78 3019.07 107 336.15 8992.02
63 197.92 3117.25 108 339.29 9160.88
64 201.06 3216.99 109 342.43 9331.32
65 204.20 3318.31 110 345.58 1 9503.32
