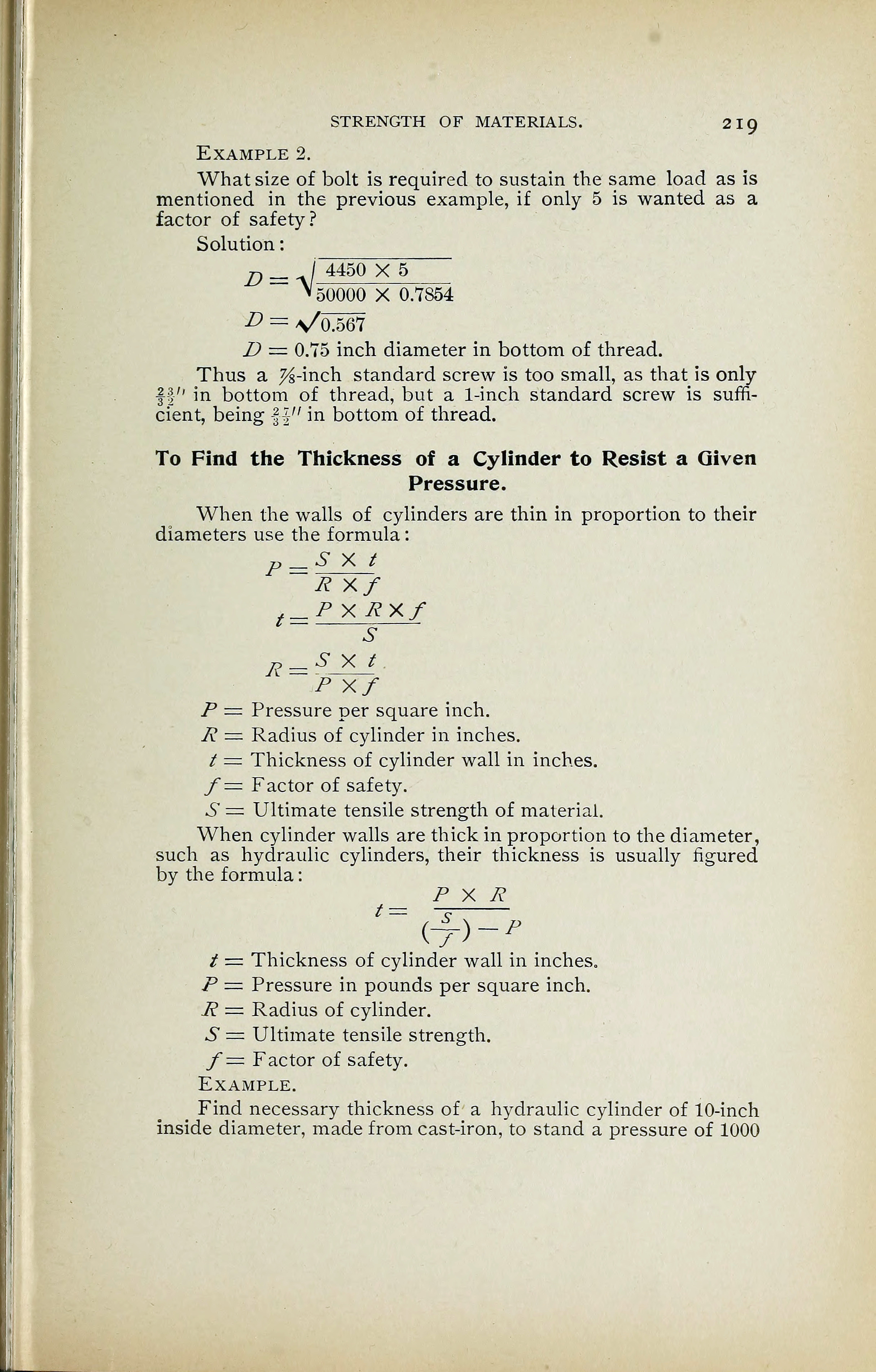

STRENGTH OF MATERIALS. 219
Example 2.
What size of bolt is required to sustain the same load as is
mentioned in the previous example, if only 5 is wanted as a
factor of safety?
Solution
:
* = ^4450 X 5
50000 X 0.7854
D = Vo.567
J) = 0.75 inch diameter in bottom of thread.
Thus a ^-inch standard screw is too small, as that is only
ff" in bottom of thread, but a 1-inch standard screw is suffi-
cient, being f f" in bottom of thread.
To Find the Thickness of a Cylinder to Resist a Given
Pressure.
When the walls of cylinders are thin in proportion to their
diameters use the formula
:
p — S X t
R x/
f= P XPXf
P =
S
S X /
P x/
p = Pressure per square inch.
P = Radius of cylinder in inches.
/ = Thickness of cylinder wall in inches.
f= Factor of safety.
S = Ultimate tensile strength of material.
When cylinder walls are thick in proportion to the diameter,
such as hydraulic cylinders, their thickness is usually figured
by the formula:
P X P
t = Thickness of cylinder wall in inches.
P = Pressure in pounds per square inch.
P = Radius of cylinder.
S = Ultimate tensile strength.
f= Factor of safety.
Example.
Find necessary thickness of a hydraulic cylinder of 10-inch
inside diameter, made from cast-iron, to stand a pressure of 1000
