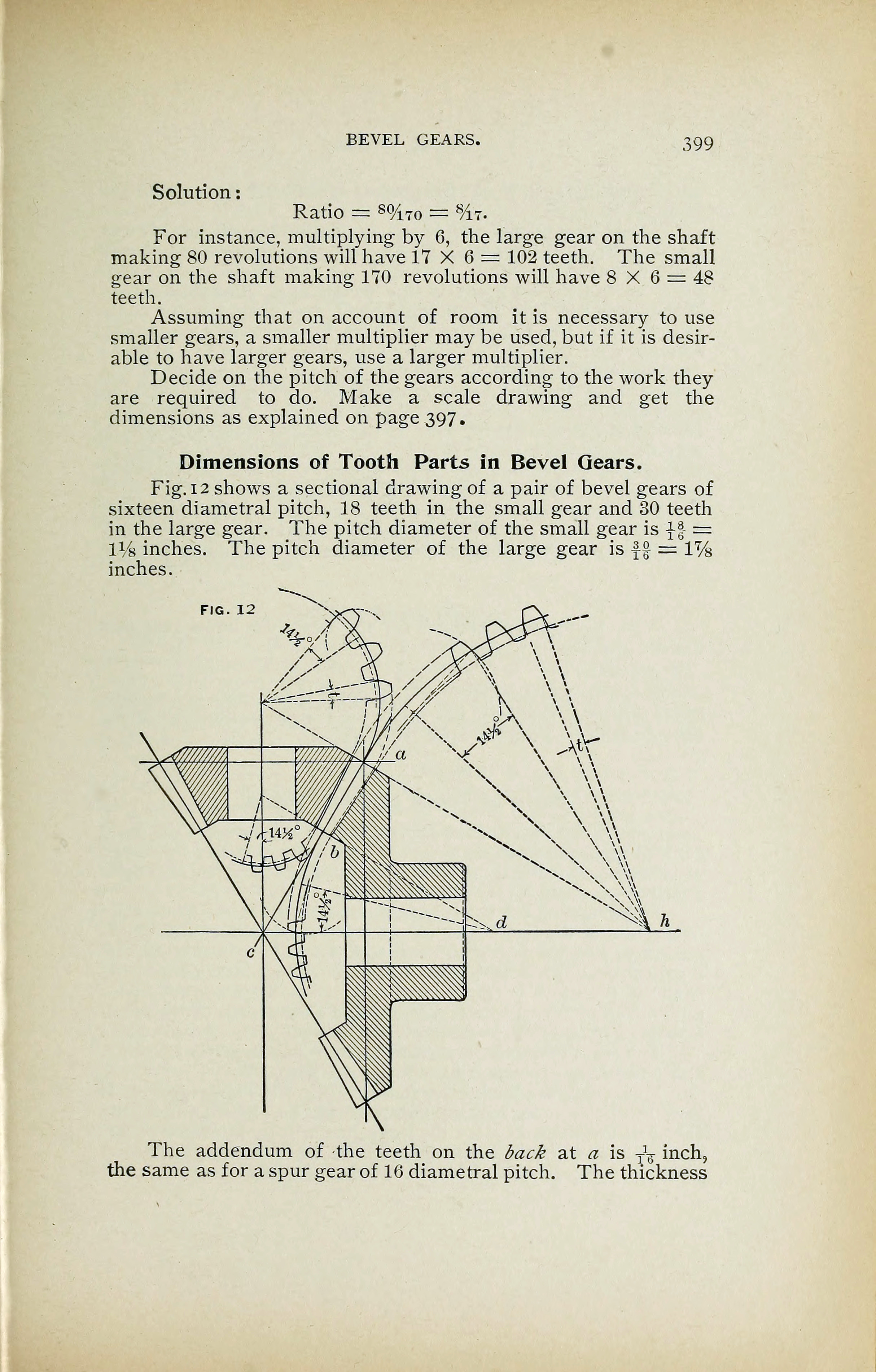

Full resolution (JPEG) - On this page / på denna sida - Gear Teeth - Bevel gears
<< prev. page << föreg. sida << >> nästa sida >> next page >>
Below is the raw OCR text
from the above scanned image.
Do you see an error? Proofread the page now!
Här nedan syns maskintolkade texten från faksimilbilden ovan.
Ser du något fel? Korrekturläs sidan nu!
This page has never been proofread. / Denna sida har aldrig korrekturlästs.
BEVEL GEARS. 399
Solution
:
Ratio = 80
/i7o = 8
/i7.
For instance, multiplying by 6, the large gear on the shaft
making 80 revolutions will have 17 X 6 = 102 teeth. The small
gear on the shaft making 170 revolutions will have 8 X 6 = 48
teeth.
Assuming that on account of room it is necessary to use
smaller gears, a smaller multiplier may be used, but if it is desir-
able to have larger gears, use a larger multiplier.
Decide on the pitch of the gears according to the work they
are required to do. Make a scale drawing and get the
dimensions as explained on page 397.
Dimensions of Tooth Parts in Bevel Gears.
Fig. 1 2 shows a sectional drawing of a pair of bevel gears of
sixteen diametral pitch, 18 teeth in the small gear and 30 teeth
in the large gear. The pitch diameter of the small gear is || =
lVs inches. The pitch diameter of the large gear is f§ = 1%
inches.
The addendum of -the teeth on the back at a is T^ inch,
the same as for a spur gear of 16 diametral pitch. The thickness
