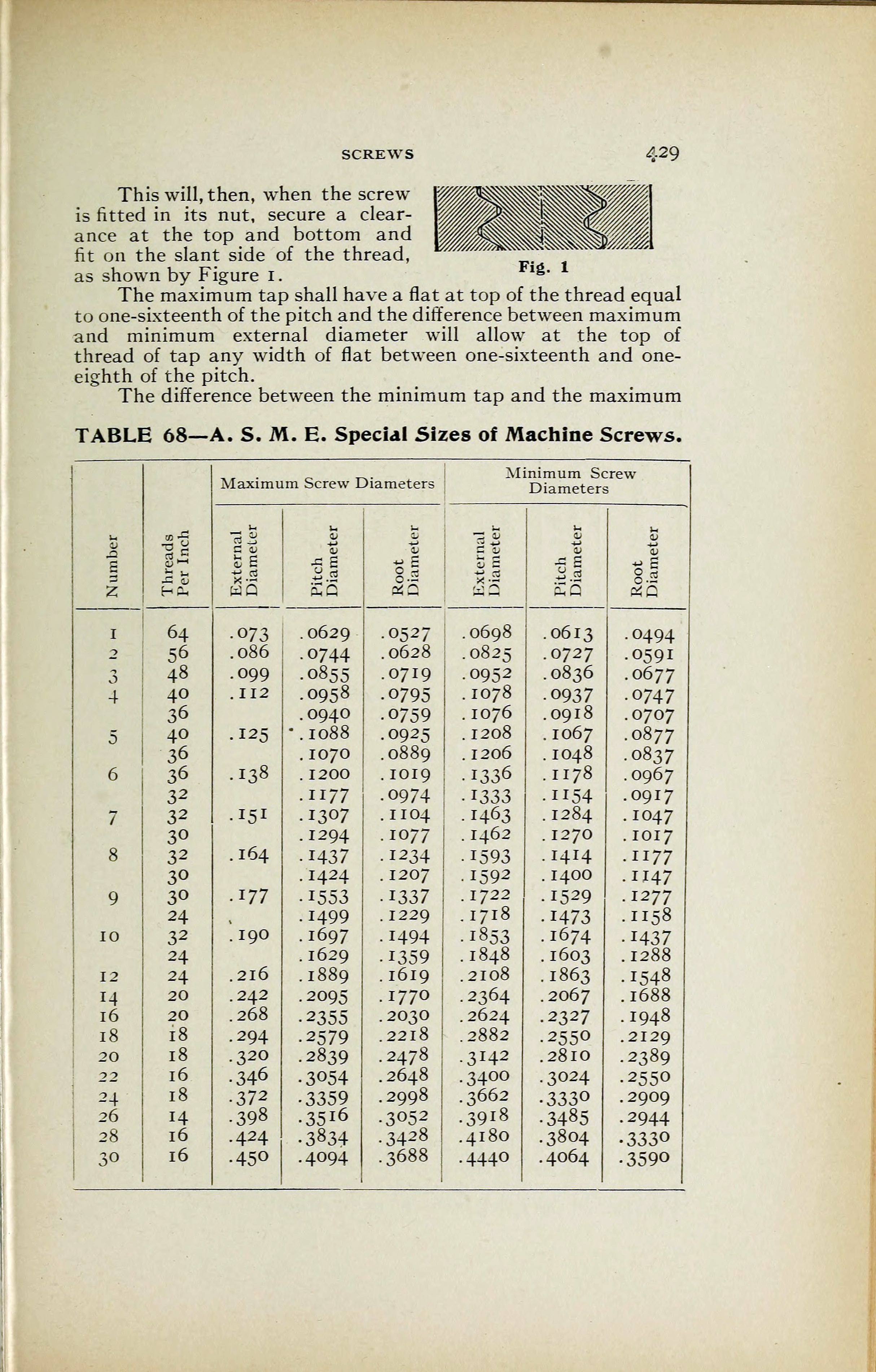

429
This will, then, when the screw-
is fitted in its nut, secure a clear-
ance at the top and bottom and
fit on the slant side of the thread,
as shown by Figure I.
lg
The maximum tap shall have a flat at top of the thread equal
to one-sixteenth of the pitch and the difference between maximum
and minimum external diameter will allow at the top of
thread of tap any width of flat between one-sixteenth and one-
eighth of the pitch.
The difference between the minimum tap and the maximum
TABLE 68—A. S. M. E. Special Sizes of Machine Screws.
M nimum Screw
m-2
Maximum Screw Diameters Diameters
- K
<u
u ~ u <U
V
1* c t; V V Cv it V
5 <u
>—
1
fc e f, 6 *E SS S s Z E
*& a a 8.s *-2 *j.2 8.2
2 HfE yQ so v n a 2 jT
Q *Q
64 • 073 0629 •0527 ! .0698 06l3 .0494
2 56 .086 0744 .0628 .0825 .0727 .0591
3 48 .099 0855 .0719 .0952 .0836 .0677
4 40 .112 0958 • 0795 .1078 •0937 .0747
36 0940 • 0759 .1076 .0918 .0707
5 40 • 125
•
1088 .0925 .1208 .1067 .0877
36 1070 .0889 .1206 .IO48 .0837
6 36 .138 1200 .1019 • 1336 .1178 .0967
32 1177 .0974 • 1333 •1154 .0917
7 32 I5 1 I3°7 .1104 .1463 .1284 .IO47
30 1294 .1077 .1462 .1270 .1017
8 32 .164 1437 • 1234 • 1593 .1414 .1177
30 1424 .1207 .1592 .1400 .1147
9 30 •177 1553 1337 .1722 •1529 .1277
24 1499 .1229 .1718 .1473 .1158
10 32 . 190 1697 .1494 .1853 .1674 •1437
24 1629 • 1359 .1848 .1603 .1288
12 24 .216 1889 .1619 .2108 .1863 .1548
M 20 .242 2095 .1770 .2364 .2067 .1688
16 20 .268 2355 .2030 .2624 .2327 .1948
18 18 • 294 2579 .2218 .2882 •2550 .2129
20 18 .320 2839 .2478 • 3142 .2810 .2389
22 16 •346 3054 .2648 .3400 .3024 •2550
24 18 • 372 3359 • 2998 .3662 .3330 .2909
26 14 .398 35i6 •3052 .39i8 •3485 •2944
28 16 .424 3834 •3428 .4180 .3804 •3330
30 16 •45° 4094 .3688 .4440 .4064 •3590
