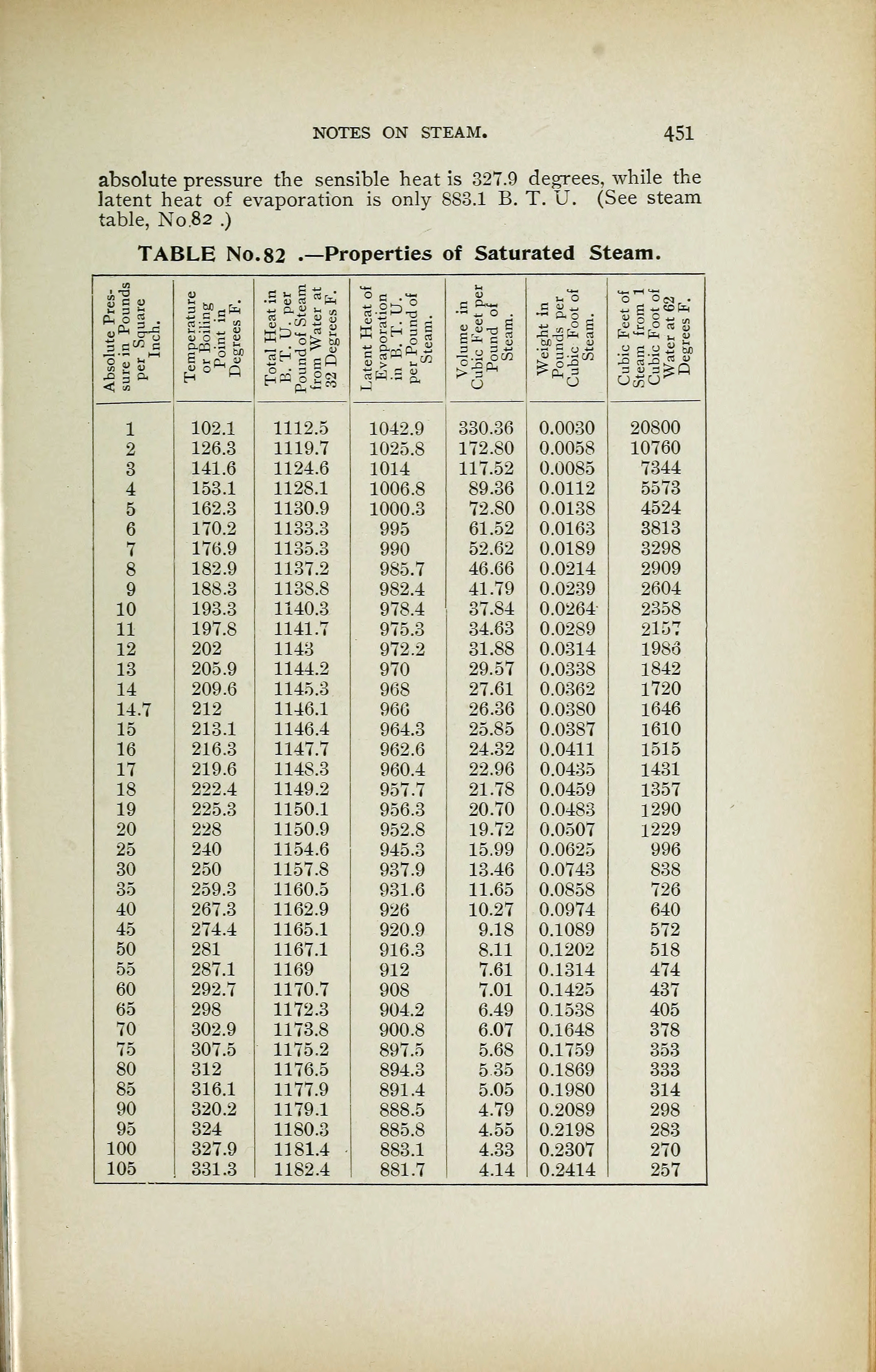

NOTES ON STEAM. 451
absolute pressure the sensible heat is 327.9 degrees, while the
latent heat of evaporation is only 883.1 B. T. U. (See steam
table, No.82 .)
TABLE No. 82 .—Properties < 3f Saturated Steam.
Absolute
Pres-
sure
in
Pounds
per
Square
Inch.
C u | « r
•
K p o> So
t« •* |
-J T3 .
K-Hg =
S ^" ^
C <u «
— 0.0 •
*j o g
2° a -
H
’« S-~co
o
« 2 o « s
fo — fa ,_ <u
u g u £J So
1 102.1 1112.5 1042.9 330.36 0.0030 20800
2 126.3 1119.7 1025.8 172.80 0.0058 10760
3 141.6 1124.6 1014 117.52 0.0085 7344
4 153.1 1128.1 1006.8 89.36 0.0112 5573
5 162.3 1130.9 1000.3 72.80 0.0138 4524
6 170.2 1133.3 995 61.52 0.0163 3813
7 176.9 1135.3 990 52.62 0.0189 3298
8 182,9 1137.2 985.7 46.66 0.0214 2909
9 188.3 1138.8 982.4 41.79 0.0239 2604
10 193.3 1140.3 978.4 37.84 0.0264 2358
11 197.8 1141.7 975.3 34.63 0.0289 2157
12 202 1143 972.2 31.88 0.0314 1986
13 205.9 1144.2 970 29.57 0.0338 1842
14 209.6 1145.3 968 27.61 0.0362 1720
14.7 212 1146.1 966 26.36 0.0380 1646
15 213.1 1146.4 964.3 25.85 0.0387 1610
16 216.3 1147.7 962.6 24.32 0.0411 1515
17 219.6 1148.3 960.4 22.96 0.0435 1431
18 222.4 1149.2 957.7 21.78 0.0459 1357
19 225.3 1150.1 956.3 20.70 0.0483 1290
20 228 1150.9 952.8 19.72 0.0507 1229
25 240 1154.6 945.3 15.99 0.0625 996
30 250 1157.8 937.9 13.46 0.0743 838
35 259.3 1160.5 931.6 11.65 0.0858 726
40 267.3 1162.9 926 10.27 0.0974 640
45 274.4 1165.1 920.9 9.18 0.1089 572
50 281 1167.1 916.3 8.11 0.1202 518
55 287.1 1169 912 7.61 0.1314 474
60 292.7 1170.7 908 7.01 0.1425 437
65 298 1172.3 904.2 6.49 0.1538 405
70 302.9 1173.8 900.8 6.07 0.1648 378
75 307.5 1175.2 897.5 5.68 0.1759 353
80 312 1176.5 894.3 535 0.1869 333
85 316.1 1177.9 891.4 5.05 0.1980 314
90 320.2 1179.1 888.5 4.79 0.2089 298
95 324 1180.3 885.8 4.55 0.2198 283
100 327.9 1181.4 883.1 4.33 0.2307 270
105 331.3 1182.4 881.7 4.14 0.2414 257
