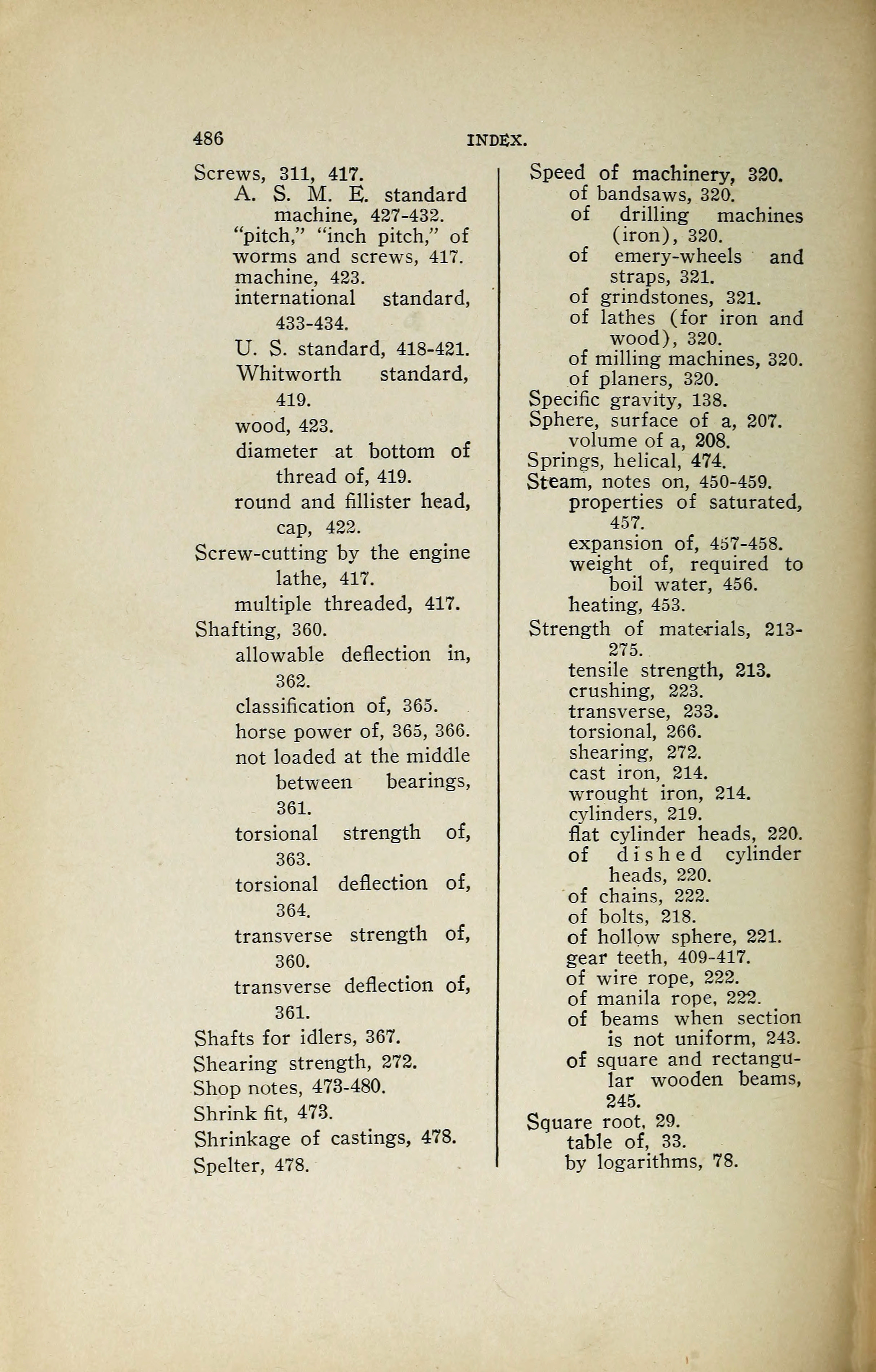

486 INDEX.
Screws, 311, 417.
A. S. M. E. standard
machine, 427-432.
"pitch," "inch pitch," of
worms and screws, 417.
machine, 423.
international standard,
433-434.
U. S. standard, 418-421.
Whitworth standard,
419.
wood, 423.
diameter at bottom of
thread of, 419.
round and fillister head,
cap, 422.
Screw-cutting by the engine
lathe, 417.
multiple threaded, 417.
Shafting, 360.
allowable deflection in,
362.
classification of, 365.
horse power of, 365, 366.
not loaded at the middle
between bearings,
361.
torsional strength of,
363.
torsional deflection of,
364.
transverse strength of,
360.
transverse deflection of,
361.
Shafts for idlers, 367.
Shearing strength, 272.
Shop notes, 473-480.
Shrink fit, 473.
Shrinkage of castings, 478.
Spelter, 478.
Speed of machinery, 320.
of handsaws, 320.
of drilling machines
(iron), 320.
of emery-wheels and
straps, 321.
of grindstones, 321.
of lathes (for iron and
wood), 320.
of milling machines, 320.
of planers, 320.
Specific gravity, 138.
Sphere, surface of a, 207.
volume of a, 208.
Springs, helical, 474.
Steam, notes on, 450-459.
properties of saturated,
457.
expansion of, 457-458.
weight of, required to
boil water, 456.
heating, 453.
Strength of materials, 213-
275.
tensile strength, 213.
crushing, 223.
transverse, 233.
torsional, 266.
shearing, 272.
cast iron, 214.
wrought iron, 214.
cylinders, 219.
flat cylinder heads, 220.
of dished cylinder
heads, 220.
of chains, 222.
of bolts, 218.
of hollow sphere, 221.
gear teeth, 409-417.
of wire rope, 222.
of manila rope, 222.
of beams when section
is not uniform, 243.
of square and rectangu-
lar wooden beams,
245.
Square root, 29.
table of, 33.
by logarithms, 78.
