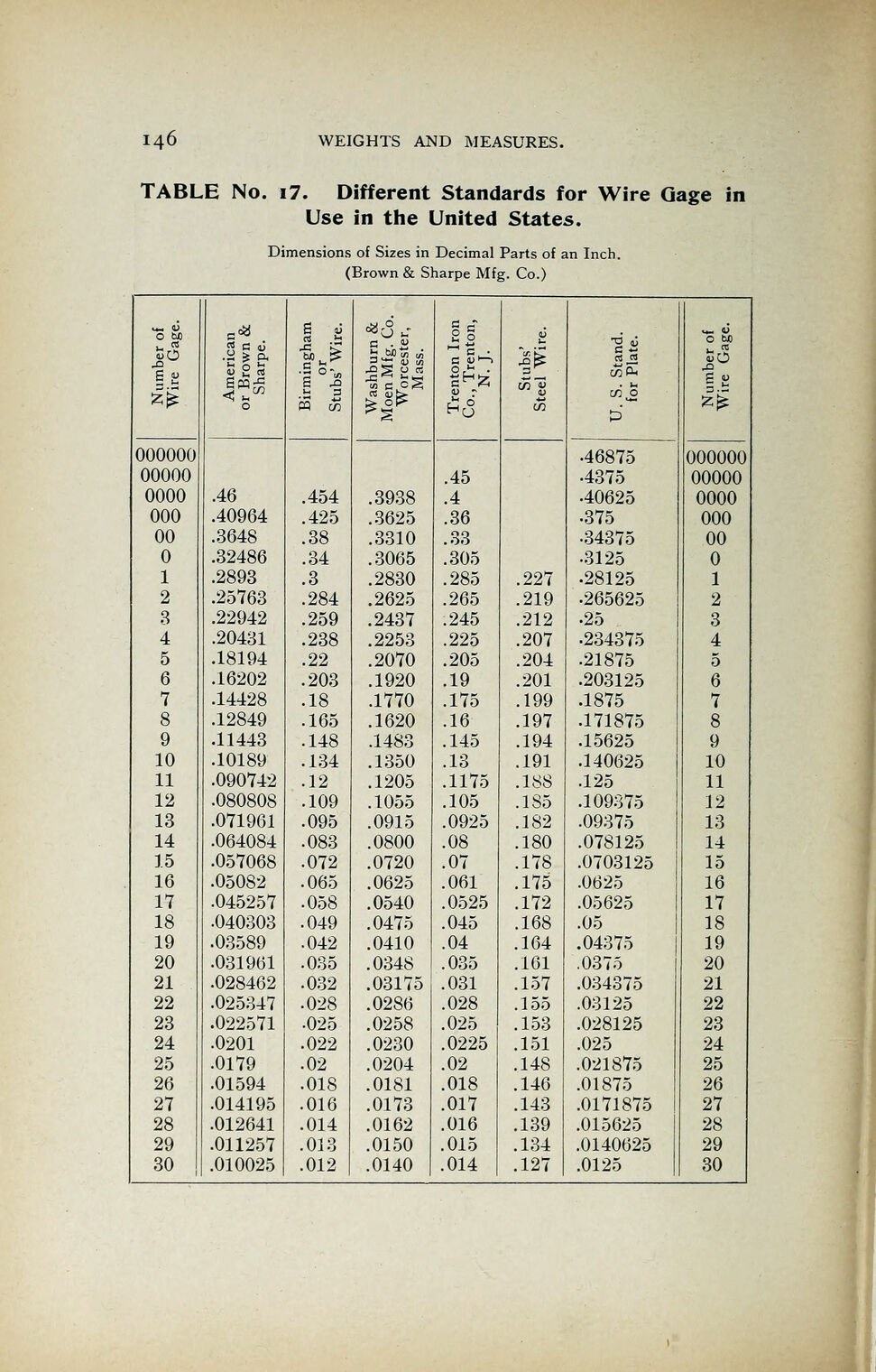

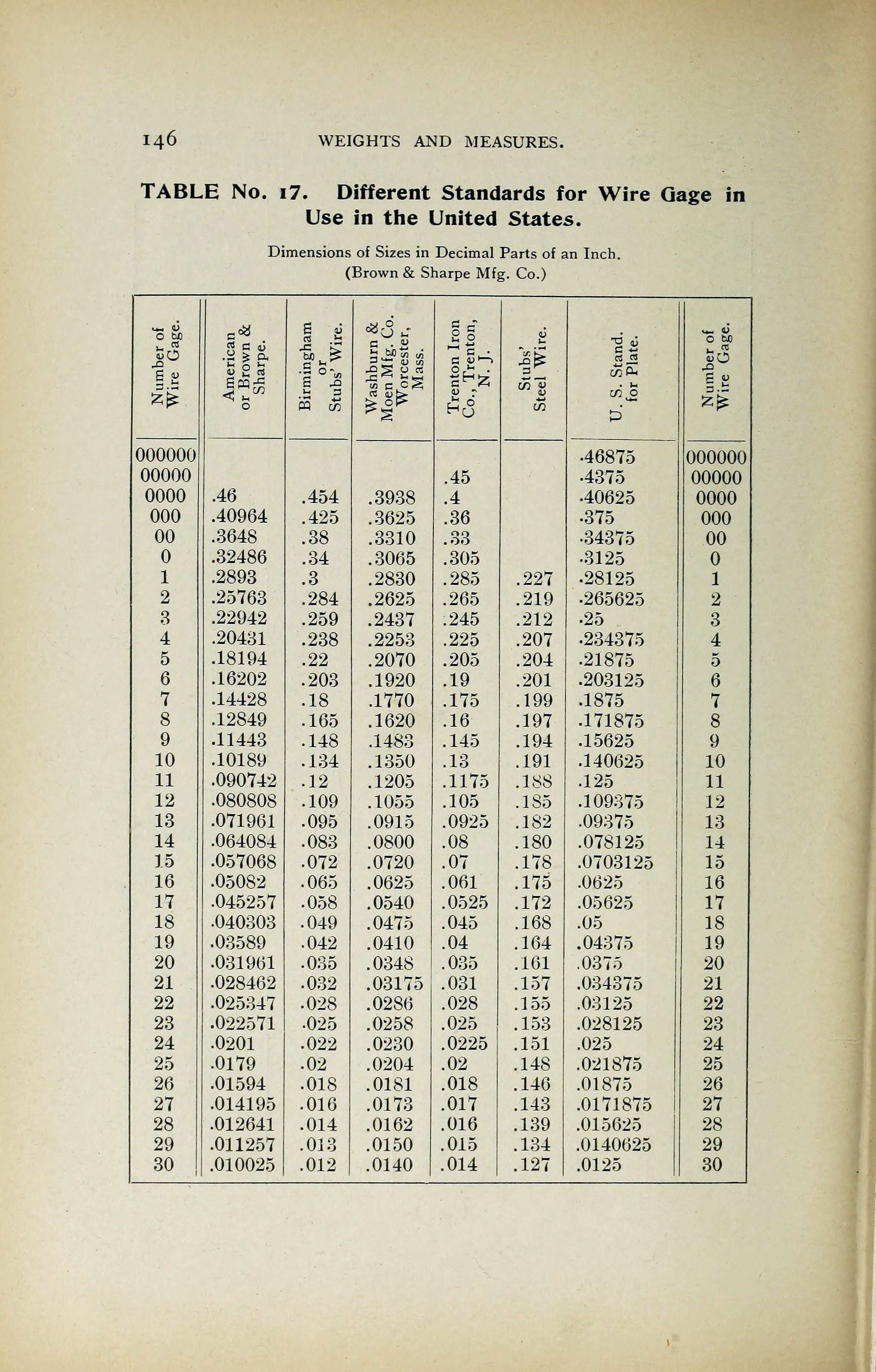

146 WEIGHTS AND MEASURES.
TABLE No. 1 7. Different Standards for Wire Gage in
Use in the United States.
Dimensions of Sizes in Decimal Parts of an Inch.
(Brown & Sharpe Mfg. Co.)
O M
So
e g
« c «
•n * fr
« 2 «
S 6
re .»-
-b £
1 °’*
shburn
&
tiMfg.
Co.
orcester.
Mass.
it
t/3 V
T3 £
. 1-1
^ re
6 £
lj* i:
3 CO »
£ ° W
trig
Sg
000000 •46875 000000
00000 .45 •4375 00000
0000 .46 .454 .3938 .4 •40625 0000
000 .40964 .425 .3625 .36 •375 000
00 .3648 .38 .3310 .33 •34375 00
.32486 .34 .3065 .305 •3125
1 .2893 .3 .2830 .285 .227 .28125 1
2 .25763 .284 .2625 .265 .219 •265625 2
3 .22942 .259 .2437 .245 .212 .25 3
4 .20431 .238 .2253 .225 .207 •234375 4
5 .18194 .22 .2070 .205 .204 •21875 5
6 .16202 .203 .1920 .19 .201 •203125 6
7 .14428 .18 .1770 .175 .199 .1875 7
8 .12849 .165 .1620 .16 .197 .171875 8
9 .11443 .148 .1483 .145 .194 .15625 9
10 .10189 .134 .1350 .13 .191 •140625 10
11 .090742 .12 .1205 .1175 .188 .125 11
12 .080808 .109 .1055 .105 .185 .109375 12
13 .071961 .095 .0915 .0925 .182 .09375 13
14 •064084 .083 .0800 .08 .180 .078125 14
15 .057068 .072 .0720 .07 .178 .0703125 15
16 .05082 .065 .0625 .061 .175 .0625 16
17 •045257 .058 .0540 .0525 .172 .05625 17
18 •040303 • 049 .0475 .045 .168 .05 18
19 .03589 .042 .0410 .04 .164 .04375 19
20 .031961 • 035 .0348 .035 .161 .0375 20
21 .028462 .032 .03175 .031 .157 .034375 21
22 .025347 .028 .0286 .028 .155 .03125 22
23 .022571 •025 .0258 .025 .153 .028125 23
24 .0201 .022 .0230 .0225 .151 .025 24
25 .0179 .02 .0204 .02 .148 .021875 25
26 .01594 .018 .0181 .018 .146 .01875 26
27 .014195 .016 .0173 .017 .143 .0171875 27
28 .012641 .014 .0162 .016 .139 .015625 28
29 .011257 .013 .0150 .015 .134 .0140625 29
30 .010025 .012 .0140 .014 .127 .0125 30
