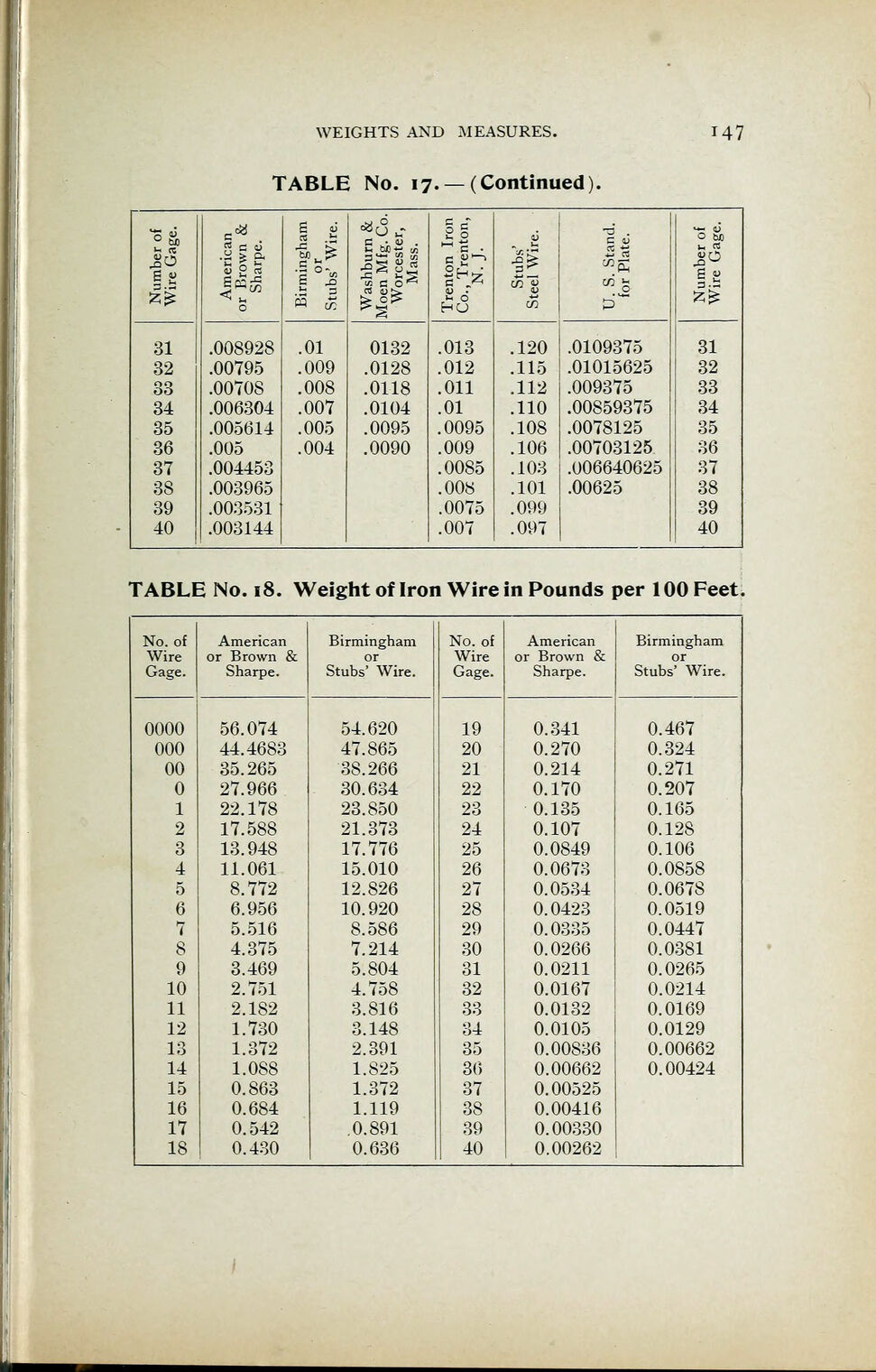

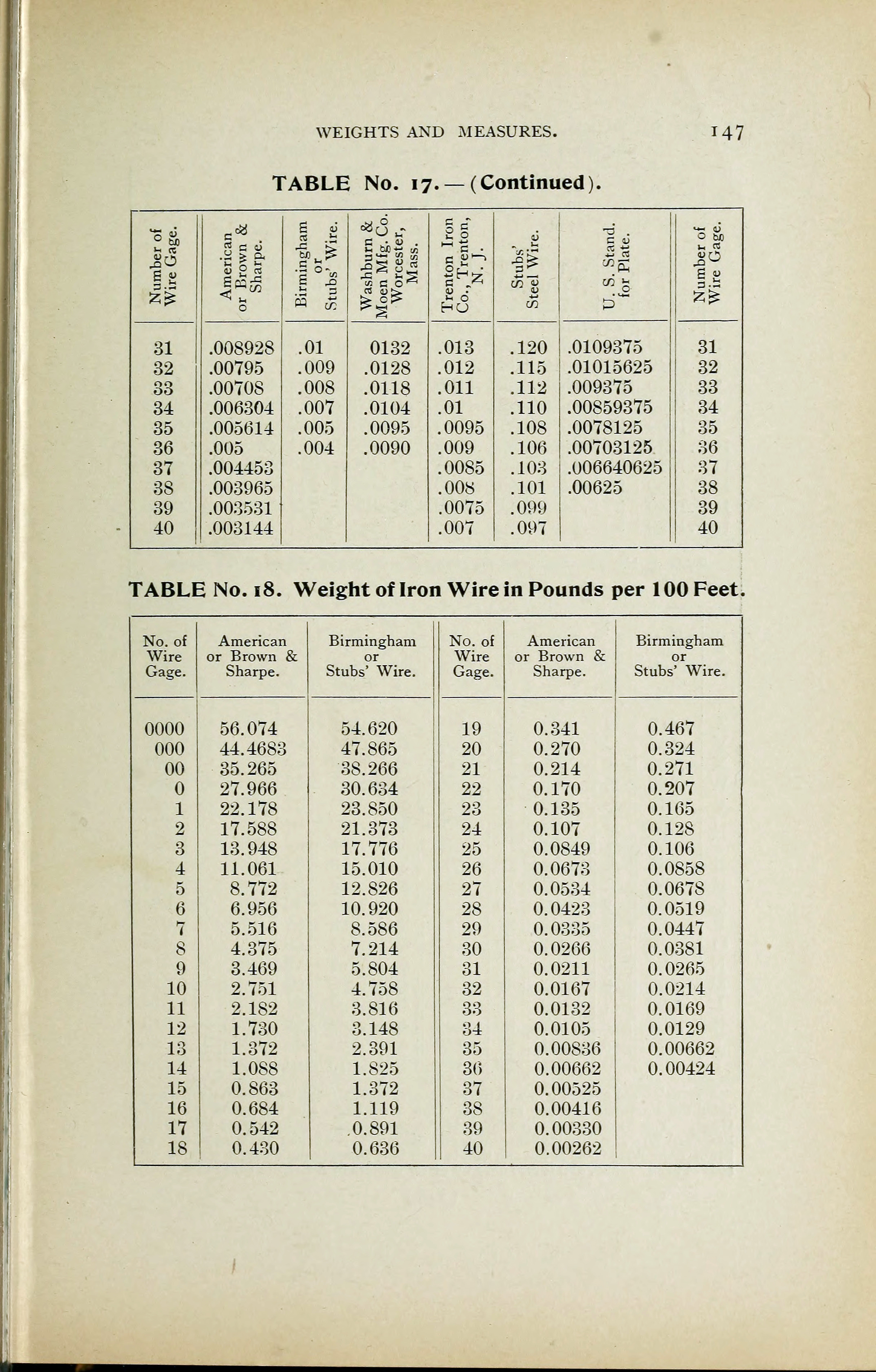

WEIGHTS AND MEASURES. 47
TABLE No. 17. — (Continued).
M
6 £
<u £ «
CO .t;
1°i
shburn
&
n
Mfg.
Co.
orcester,
Mass.
if
1-1
c •
V
1!
c v "o So
Jo
3.S
££ O « Cr.
C5 vt>
HO Cfi D~ *£
31 .008928 .01 0132 .013 .120 .0109375 31
32 .00795 .009 .0128 .012 .115 .01015625 32
33 .00708 .008 .0118 .011 .112 .009375 33
34 .006304 .007 .0104 .01 .110 .00859375 34
35 .005614 .005 .0095 .0095 .108 .0078125 35
36 .005 .004 .0090 .009 .106 .00703125 36
37 .004453 .0085 .103 .006640625 37
38 .003965 .008 .101 .00625 38
39 .003531 .0075 .099 39
40 .003144 .007 .097 40
TABLII No. 18. Weight of Iron Wire in Pounds per 1 00 Feet.
No. of American Birmingham No. of American Birmingham
Wire or Brown & or Wire or Brown & or
Gage. Sharpe. Stubs’ Wire. Gage. Sharpe. Stubs’ Wire.
0000 56.074 54.620 19 0.341 0.467
000 44.4683 47.865 20 0.270 0.324
00 35.265 38.266 21 0.214 0.271
27.966 30.634 22 0.170 0.207
1 22.178 23.850 23 0.135 0.165
2 17.588 21.373 24 0.107 0.128
3 13.948 17.776 25 0.0849 0.106
4 11.061 15.010 26 0.0673 0.0858
5 8.772 12.826 27 0.0534 0.0678
6 6.956 10.920 28 0.0423 0.0519
7 5.516 8.586 29 0.0335 0.0447
8 4.375 7.214 30 0.0266 0.0381
9 3.469 5.804 31 0.0211 0.0265
10 2.751 4.758 32 0.0167 0.0214
11 2.182 3.816 33 0.0132 0.0169
12 1.730 3.148 34 0.0105 0.0129
13 1.372 2.391 35 0.00836 0.00662
14 1.088 1.825 36 0.00662 0.00424
15 0.863 1.372 37 0.00525
16 0.684 1.119 38 0.00416
17 0.542 .0.891 39 0.00330
18 0.430 0.636 40 0.00262
